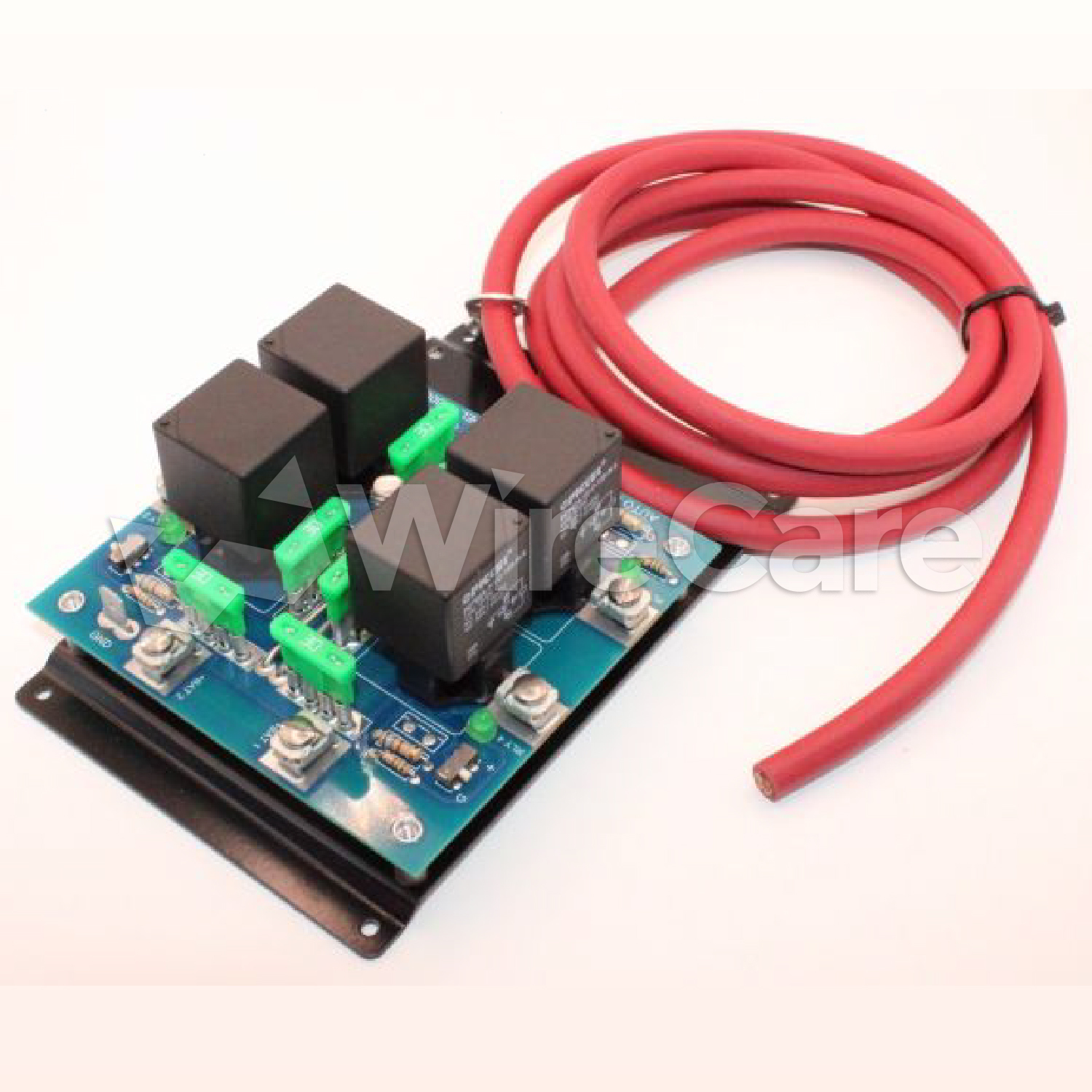

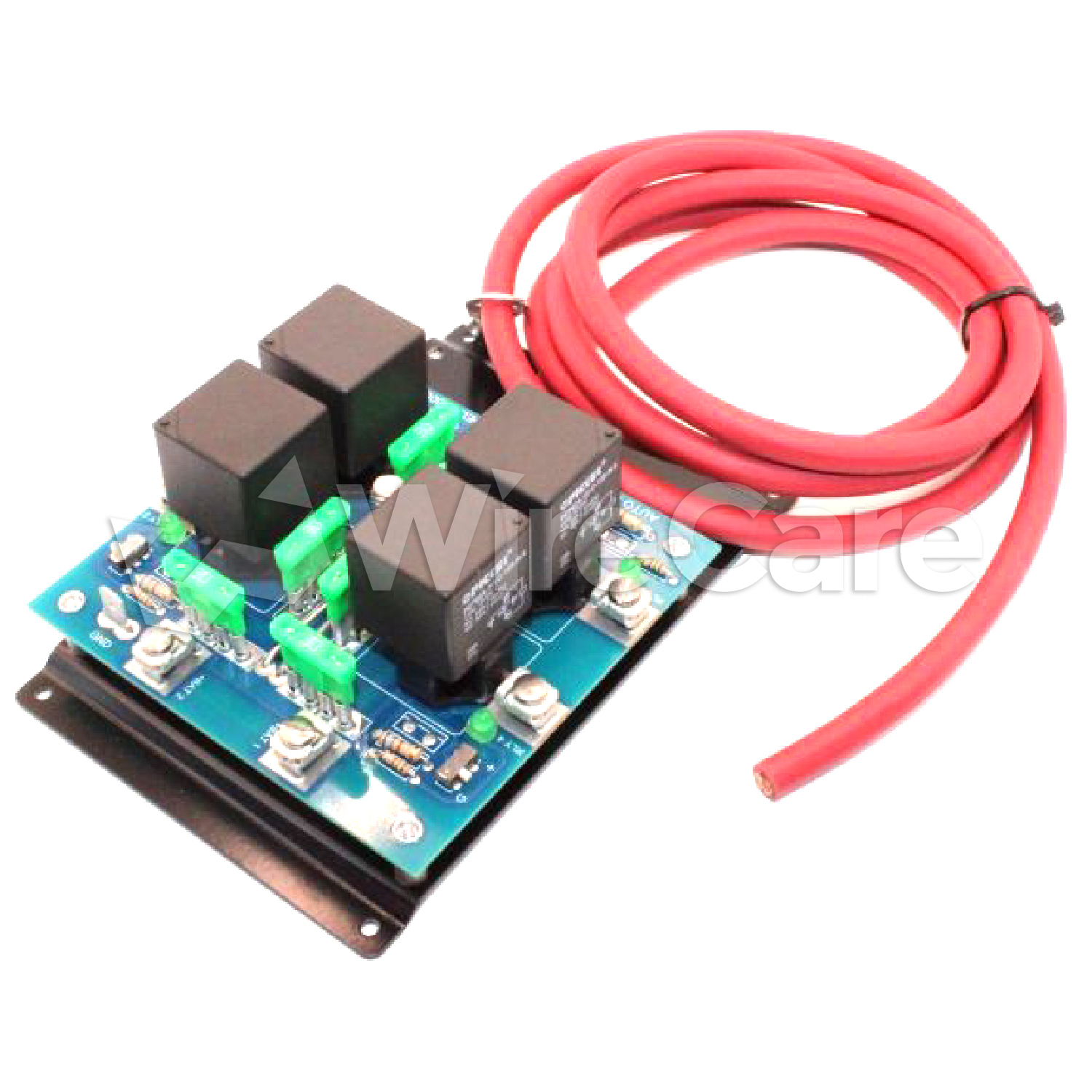

ARC-4000U-SS2 - Universal Relay Board w/2 Solid State Relays and 2 Mechanical Relays

ARC 4000U Universal Relay Board with Solid State Compatibility

The ARC 4000U is out newest standalone relay module, this new unit has the ability to choose if a relay is ground triggered or voltage triggered just like our 8000U unit. But we didn’t stop there, this new board will also be sold with SOLID STATE relays. You read that right, SOLID STATE!! The unit needs to be ordered as a Mechanical Relay Board or a Solid State board. It can ship with either 1,2,3, or 4 SS relays and the others will be selectable triggered mechanical relays.

FEATURES

• Available with solid state relays
• Solid State Relays can be replaced in case of failure.
• 40 Amp sealed mechanical relays standard, up to four ground activated solid state relays optional
• Selector switches allow each relay to be activated by positive voltage or ground (mechanical relay positions only)
• All circuits are independently fused
• 2 fused constant power outputs
• Relays have flyback protection to protect EFI/ECU controls
• Includes label set for each relay
• Each Relay output has an LED for ease of troubleshooting
