8 Switch Pro Mod System with Lighted Kill Button, Roll Bar Mount, Black Faceplate

8 Switch Control Module

The Auto Rod Controls 8 Switch Pro Mod System is purpose-built for pro mod and high-horsepower race applications where a conventional switch panel simply won't cut it. The two standout innovations in this system are the translucent red lighted kill switch and the built-in separation between the car's 12 or 16 volt battery and the external 24 volt start battery. The kill switch is 1-5/8" in diameter, requires only 1/32" of travel to activate, and automatically resets after use. The 24 volt battery separation is a first in the industry: other systems require an external relay to prevent the 24 volt source from back-feeding into the 12 or 16 volt side of the car, which can damage components, blow fuses, or burn up relays. This system separates the two sides permanently with no wiring alterations required.

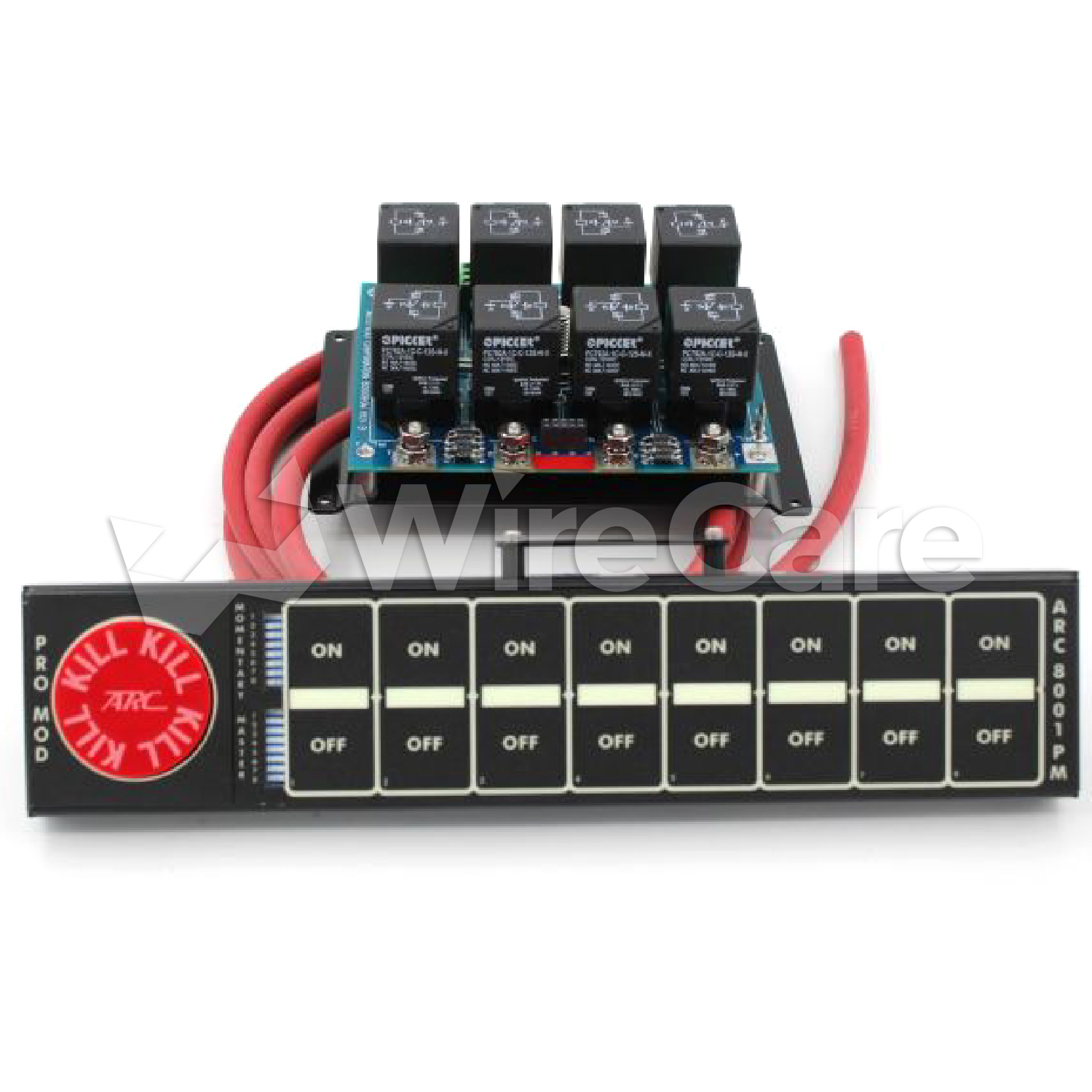

Each kit includes a switch panel, relay board, and wiring harness. The 11/16" thin profile roll bar mount keeps the panel tight and clean with no bundle of wires running down the bar, and a library of 58 race and street labels lets you backlight each switch position to match your setup. LED light bars display red for off and green for on at a glance, any switch position can be configured as maintained on/off or momentary push action, and a master kill switch can cut any, none, or all positions simultaneously for safety. The system is 16V compatible, accepts a firewall keypad for under-hood switch access, and is backed by a lifetime warranty. Available in roll bar and dash mount versions with white, black, carbon fiber white, and carbon fiber black faceplate options.

FEATURES

• 11/16” Thick front to back
• 16V Compatible
• LED light bars Red off – Green on
• Library of 58 race & street labels to back light over light bars
• Duplicate words in white to place on relays
• Ability to make any switch location be on/off or push action momentary
• Master kill switch turning off any – none or all of the switches at the same time for ultimate safety
• No dash cutting, units Velcro mount to dash. For new flush mount brackets go to accessories
• No bundle of wires coming down the roll bar
• Accepts a firewall keypad which allows you to run the first 4 switches from under the hood
• Cable connector retaining brackets
• The only systems to carry a lifetime warranty
• Each unit ships with a wiring harness, label kit, and connector kit
