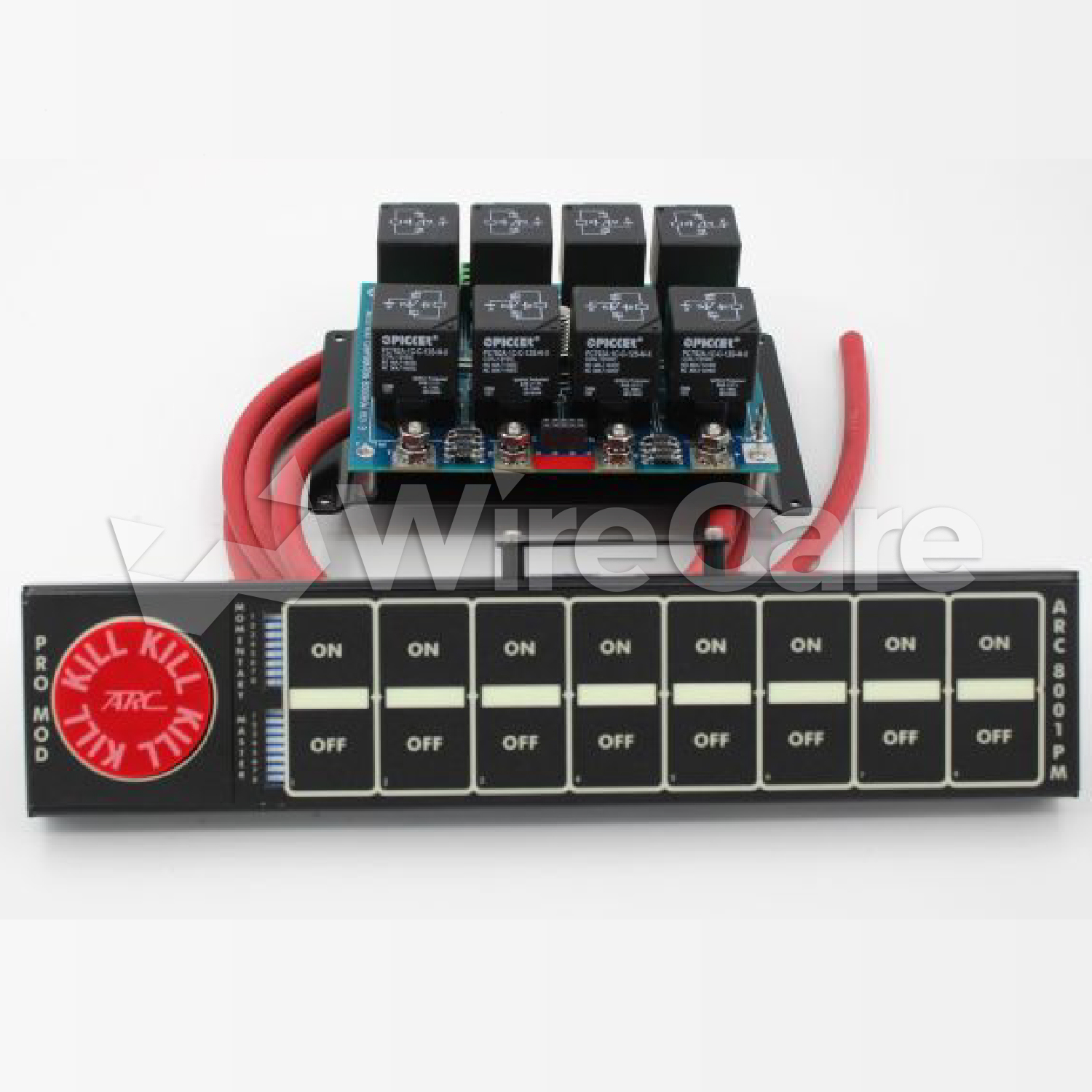

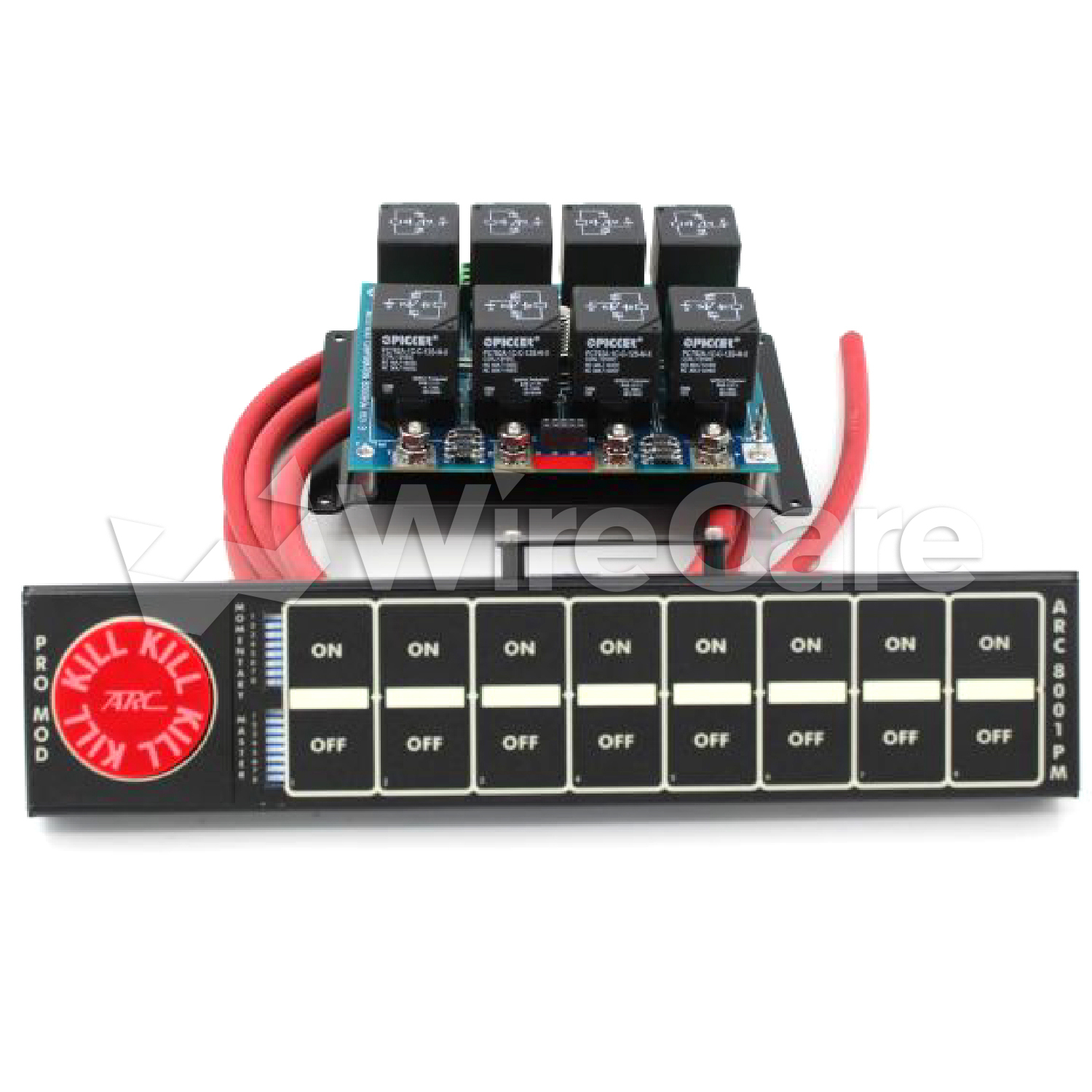

8 Switch Pro Mod System w/ Lighted Kill Button, Roll Bar Mount, Black Faceplate, w/ 4 Additional Ground Triggered Relays

8 Switch Control Module

The Auto Rod Controls 8 Switch Pro Mod ECU System builds on the standard 8001RPM with four additional ground triggered relay positions, making it the ideal switch panel for fuel injected and ECU controlled race builds. Those four extra relay positions are independently controllable via ground inputs from your ECU or EFI system, allowing the engine management system to switch accessories, fans, pumps, or other outputs automatically without driver input. Like the base Pro Mod system, the two standout innovations are the translucent red lighted kill switch — 1-5/8" diameter with only 1/32" of travel to activate and automatic reset — and the industry first built-in separation between the car's 12 or 16 volt battery and the external 24 volt start battery, with no wiring alterations required.

Each kit includes a switch panel, relay board, and wiring harness. The 11/16" thin profile roll bar mount keeps the panel tight and clean with no bundle of wires running down the bar, and a library of 58 race and street labels lets you backlight each switch position. LED light bars display red for off and green for on, any switch position can be configured as maintained on/off or momentary push action, and a master kill switch can cut any, none, or all positions simultaneously. The system is 16V compatible, accepts a firewall keypad for under-hood switch access, and is backed by a lifetime warranty. Available in roll bar and dash mount versions with white, black, carbon fiber white, and carbon fiber black faceplate options.

FEATURES

• 11/16” Thick front to back
• 16V Compatible
• LED light bars Red off – Green on
• Library of 58 race & street labels to back light over light bars
• Duplicate words in white to place on relays
• Ability to make any switch location be on/off or push action momentary
• Master kill switch turning off any – none or all of the switches at the same time for ultimate safety
• No dash cutting, units Velcro mount to dash. For new flush mount brackets go to accessories
• No bundle of wires coming down the roll bar
• Accepts a firewall keypad which allows you to run the first 4 switches from under the hood
• Cable connector retaining brackets
• The only systems to carry a lifetime warranty
• Each unit ships with a wiring harness, label kit, and connector kit
