Harnessflex® Hinged Joiner - 20mm to 8mm - 10 piece pack

Manufacturer: Harnessflex
jps2008
jps2008
JPS2008

Price Each: $1.76

Total Price: $17.64

Product Description

Harnessflex

Hinged Joiner

One-piece joiner and elbow hinged fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger.

TEMPERATURE: -40ºC to 120ºC

MATERIAL: Polyamide (Nylon) 66

Harnessflex

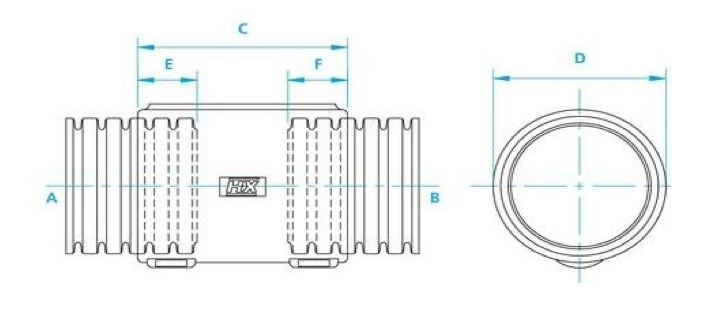

Sizing Chart

Part Number NC Conduit Size (A) NC Conduit Size (B) NW Conduit Size (A) NW Conduit Size (B) C (mm) D (mm) E (mm) F (mm)
JPS1208 12 08 10 7.5 38 16 10 10
JPS1212 12 12 10 10 36 16 10 10
JPS1612 16 12 13 10 36 21 10 10
JPS1616 16 16 13 13 36 21 10 10
JPS2008 20 08 17 7.5 38 26 12 10
JPS2012 20 12 17 10 38 26 12 10
JPS2016 20 16 17 13 38 26 12 10
JPS2020 20 20 17 17 38 26 12 12
JPS2520 25 20 22 17 39 33 12 12
JPS2525 25 25 22 22 39 33 13 13
JPS2820 28 20 23 17 39 33 13 13
JPS2825 28 25 23 22 39 33 13 13
JPS2828 28 28 23 23 39 33 13 13

Technical Specifications

Color Black
