TRI-CLAMP® FLANGED GASKETS

Rubber Fab Tri-Clamp® Flanged Gaskets

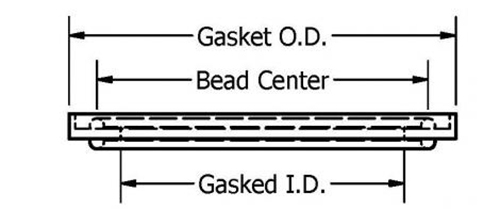

Rubber Fab's Type II Flanged Tri-Clamp® gaskets offer the same trusted sanitary sealing performance as the standard Type I, with one key difference: a flanged outer edge that fits over the ferrule connection, making alignment and installation significantly easier, especially in larger diameter pipelines or in tight, hard-to-reach locations. Like all Rubber Fab sanitary gaskets, they are ADI Free (Animal Derived Ingredient Free) and USP Class VI certified for use in food, dairy, beverage, biotech, and pharmaceutical processing. Note: Buna N is not USP Class VI or ADI Free.

Available in EPDM, Platinum Cured Silicone, FKM Fluoroelastomer, and Buna N, in nominal diameters from 1" through 12", the flanged lineup covers a wide range of process conditions and pipeline sizes. If you're working with larger diameter sanitary lines or simply want a gasket that's easier to seat consistently during assembly and maintenance, the Type II flanged design is the practical upgrade.

Download Rubber Fab's Information Sheet

About Gasket Materials

Tuf-Flex®: Tuf-Flex® is the world’s first unitized gasket, setting new standards for purity, performance and flexibility. A Tuf-Flex® Gasket’s contact surface is PTFE unitized to an EPDM rubber inner core. This totally bonded construction provides a PTFE gasket with the mechanical characteristics, including memory, of an elastomer gasket. Designed to meet critical requirements in biopharmaceutical, ultra-pure water, WFI (water for injection) and difficult food and beverage processing.

Tuf-Steel®: Tuf-Steel® is composed of a unique 50/50 blend of non- pigmented PTFE and 316L passivated and atomized stainless steel. Testing and seven years of documented application usage has demonstrated that Tuf-Steel® is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime.

PTFE: PTFE is the material of choice whenever low temperature flexibility or gasket memory is not required and can remain in service for longer periods of time in both water andsteam applications. PTFE is not recommended with large temperature variations due to creep and cold flow. PTFE has minimal extractables, has a low absorption rate and excellent resistance to process fluids.

Platinum Cured Silicone: Platinum Cured Silicone is the material of choice in sanitary water systems when PTFE is not feasible due to severely misaligned fittings, or if the cost of high pressure clamps does not outweigh the benefits of PTFE (extended service life). See Rubber Fab’s Platinum Silicone Hygienic Seal literature for more information.

FKM & EPDM: FKM Fluoroelastomer and EPDM compounds are specified by many of our process equipment manufacturers. They are generally suitable for these applications, however, service life must be considered and a preventative maintenance program be implemented to mitigate degradation.

Buna: Buna is the last choice in most applications due to temperature limitations and does not pass U.S. Pharmacopeia Class VI Certification and Cytotoxicity.
