EZ-RJ45® CAT6 Connectors - 50 Piece Clamshell

EZ-RJ45® CAT6 Connectors

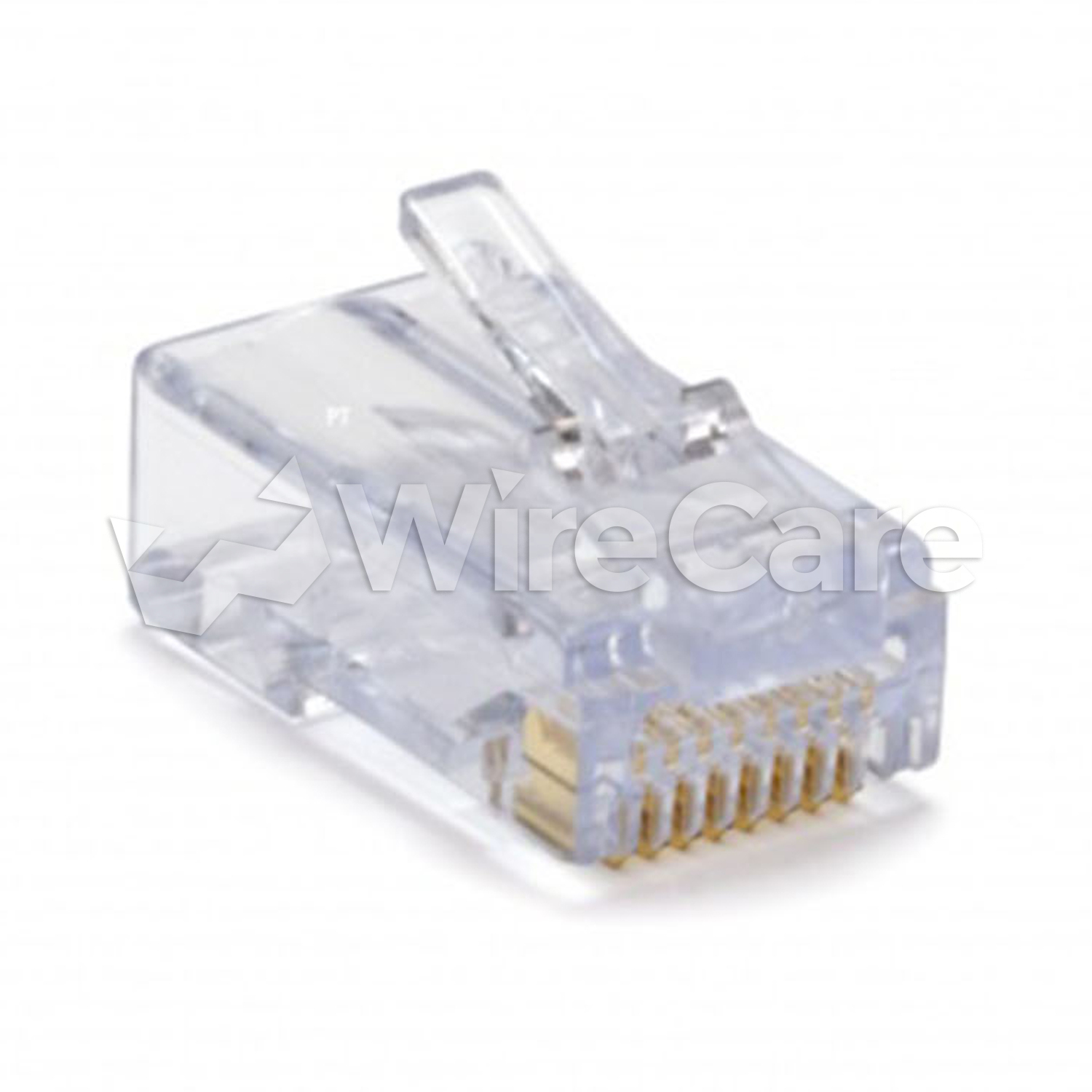

The Original EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

MAX CABLE OUTER DIAMETER: 0.275” (6.98mm)

MAX INSULATION DIAMETER: 0.040” (1.016mm)

COLOR: Clear/Transparent

ADDITIONAL INFORMATION:

• Meets ANSI/EIA/TIA/TAA specifications
• Solid or Stranded, 24 – 23 AWG
• UL Listed and RoHS/FCC compliant
• 50 micron gold plated contacts
• Made in USA
