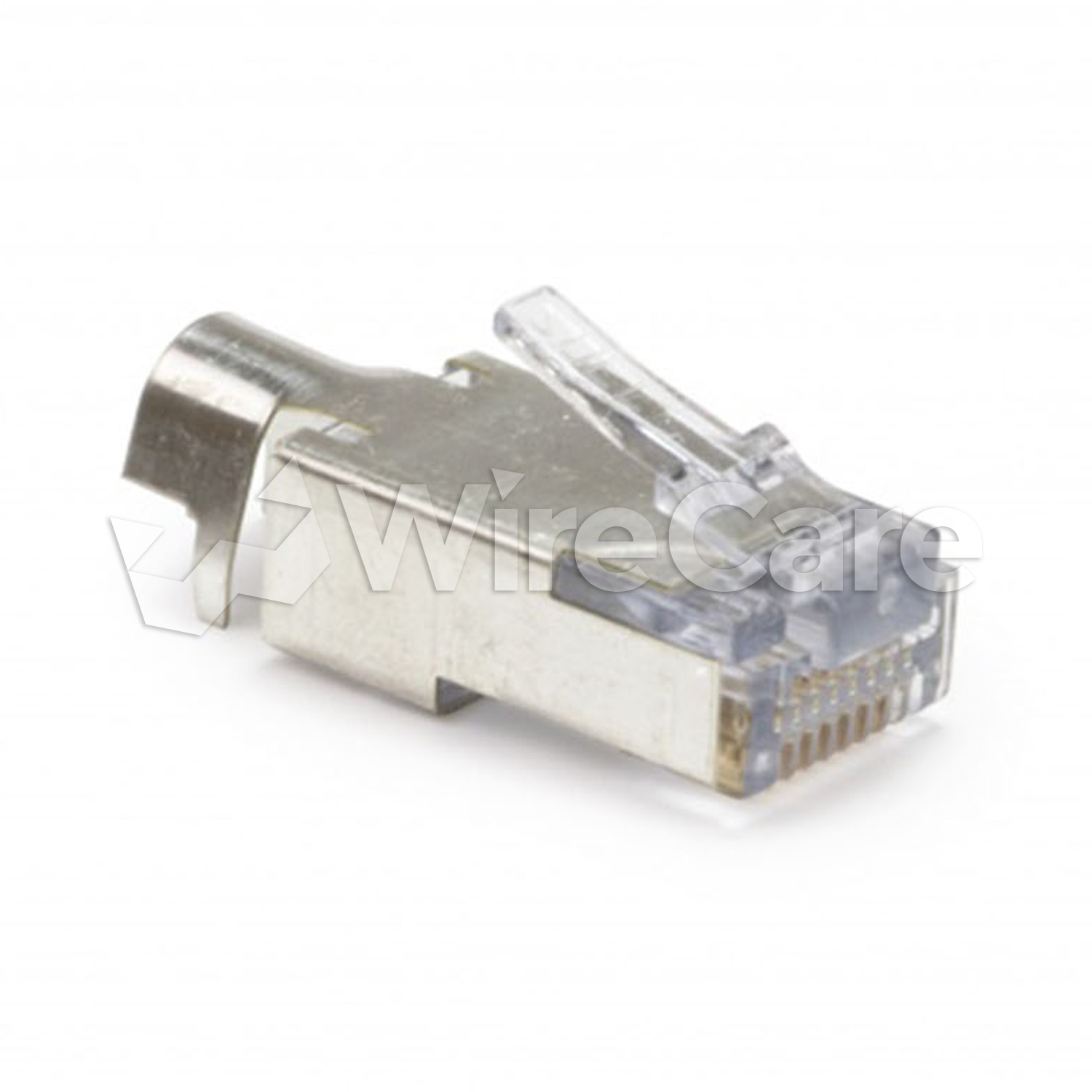

Shielded EZ-RJ45® for Cat5e & Cat6 w/ External Ground

Shielded EZ-RJ45® for CAT5e & CAT6 with External Ground

The Original EZ-RJ45® shielded CAT5/6 connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front for EZ verification of wiring sequence. Applications with RF problems or grounding requirements usually specify to use shielded cable & shielded connectors.

MAX CABLE OUTER DIAMETER: 7.11mm (0.280")

MAX INSULATION DIAMETER: 1.016mm (0.040")

COLOR: Clear/Transparent

ADDITIONAL INFORMATION:

• For use with CAT5e/6+ shielded cable.
• For solid round or stranded wire cables.
• UL Rated, FCC compliant.
• TAA Compliant.
