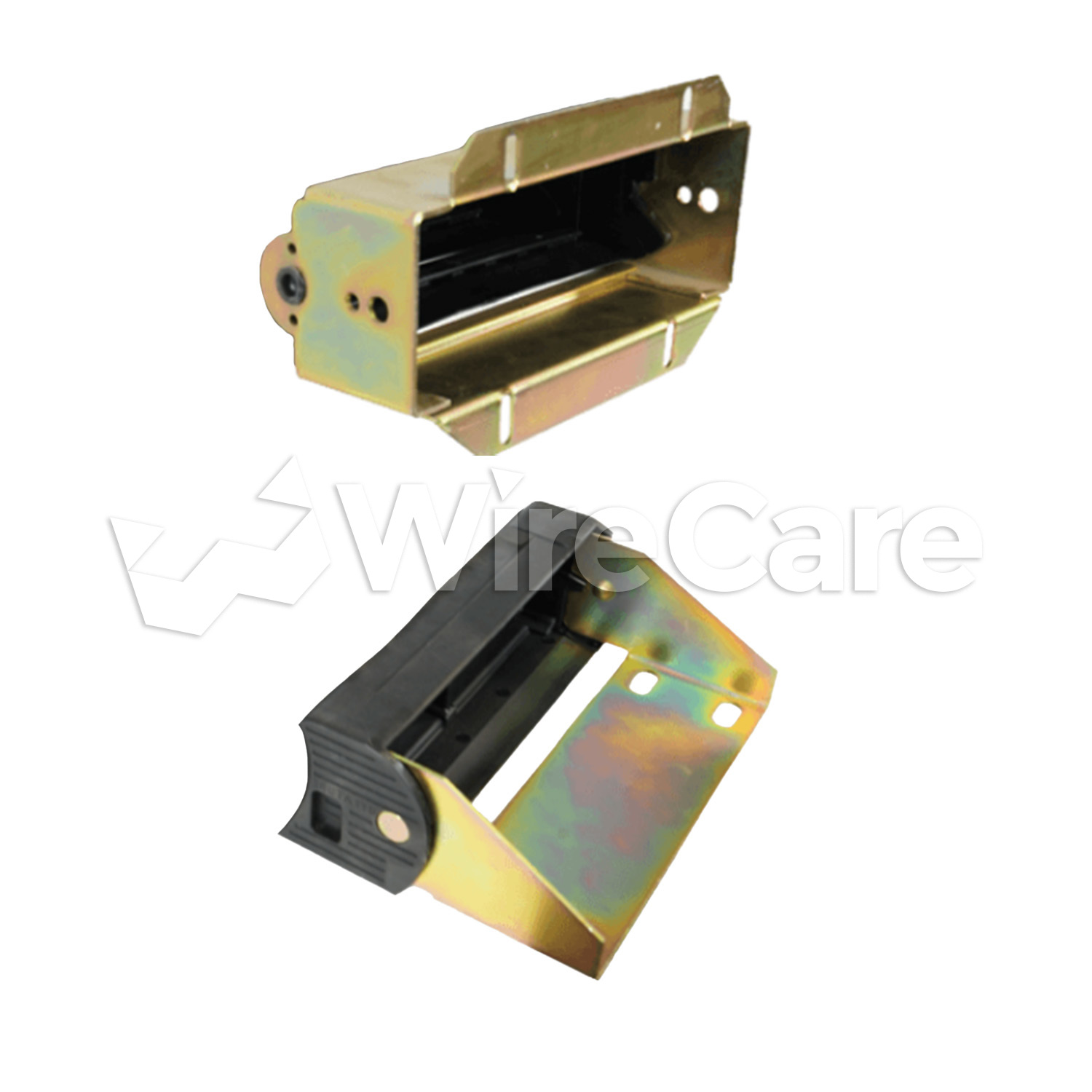

Nylatube® Brackets, KLE Series, KLE1

Dynatect® Cable Hose Carriers - Nylatube® KLE Series

The Nylatube® KLE Series is a medium- to large-sized standard enclosed plastic cable carrier. Featuring a durable design with hinge-open bars on the outer radius, the KLE Series is designed for machine tool, heavy-duty, and long-travel applications while providing protected routing for cables and hoses.

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high-performance, heavy- or light-duty applications with the presence of abrasives, heat, and debris.

APPLICATIONS: Machine Tools, Heavy-Duty Applications, Long-Travel Applications

SERIES: KLE series

KLE SERIES INSIDE WIDTH RANGE : 3″ to 7″ (76 to 178 mm)

KLE SERIES INSIDE HEIGHT RANGE: 1.76″ (45 mm)

KLE SERIES MOUTNING HEIGHT RANGE: 10″ to 26″ (254 to 660 mm)

---

Carrier Flanges

---

Carrier Cross Sectional View

Model	A- Inside Width	C - Outer Width	Weight (lb/Ft.)	Curve Height
KLE1-10	3.00	3.75	1.25	10.00
KLE1-12	3.00	3.75	1.25	12.00
KLE1-14	3.00	3.75	1.25	14.00
KLE1-18	3.00	3.75	1.25	18.00
KLE2-10	4.50	5.25	1.88	10.00
KLE2-12	4.50	5.25	1.88	12.00
KLE2-14	4.50	5.25	1.88	14.00
KLE2-18	4.50	5.25	1.88	18.00
KLE3-10	7.00	7.75	2.92	10.00
KLE3-12	7.00	7.75	2.92	12.00
KLE3-14	7.00	7.75	2.92	14.00
KLE3-18	7.00	7.75	2.92	18.00

---

Carrier Side View - Inches(mm) & Weight Load
