Home > Categories > Cable Organization > Cable & Hose Carriers > Nylatube® Kle Series Cable & Hose Carriers > Nylatube®, Kle Series, Kle2, 14" Curve Height

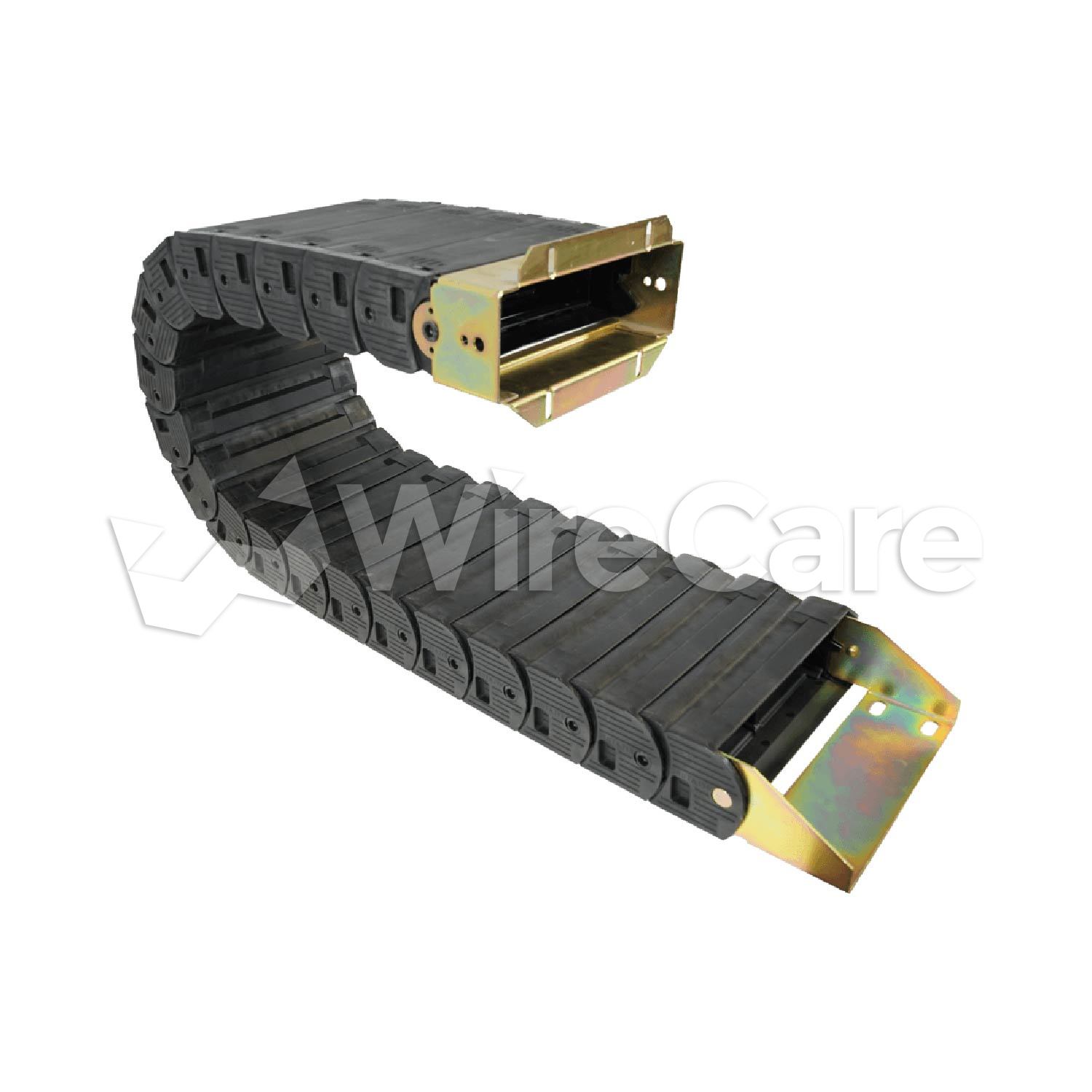

Nylatube®, KLE Series, KLE2, 14" Curve Height

Manufacturer: Dynatect
kle2-14-footage
kle2-14-footage
KLE2-14-FOOTAGE

Price Each: $31.65

Total Price: $31.65

Product Description

Dynatect Logo

Dynatect® Cable Hose Carriers - Nylatube® KLE Series

The Nylatube® KLE Series is a medium- to large-sized standard enclosed plastic cable carrier. Featuring a durable design with hinge-open bars on the outer radius, the KLE Series is designed for machine tool, heavy-duty, and long-travel applications while providing protected routing for cables and hoses.

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high-performance, heavy- or light-duty applications with the presence of abrasives, heat, and debris.

APPLICATIONS: Machine Tools, Heavy-Duty Applications, Long-Travel Applications

SERIES: KLE series

KLE SERIES INSIDE WIDTH RANGE : 3″ to 7″ (76 to 178 mm)

KLE SERIES INSIDE HEIGHT RANGE: 1.76″ (45 mm)

KLE SERIES MOUTNING HEIGHT RANGE: 10″ to 26″ (254 to 660 mm)

Carrier Cross Sectional View

KLE Series Cross
Model A- Inside Width C - Outer Width Weight (lb/Ft.) Curve Height
KLE1-10 3.00 3.75 1.25 10.00
KLE1-12 3.00 3.75 1.25 12.00
KLE1-14 3.00 3.75 1.25 14.00
KLE1-18 3.00 3.75 1.25 18.00
KLE2-10 4.50 5.25 1.88 10.00
KLE2-12 4.50 5.25 1.88 12.00
KLE2-14 4.50 5.25 1.88 14.00
KLE2-18 4.50 5.25 1.88 18.00
KLE3-10 7.00 7.75 2.92 10.00
KLE3-12 7.00 7.75 2.92 12.00
KLE3-14 7.00 7.75 2.92 14.00
KLE3-18 7.00 7.75 2.92 18.00

Carrier Side View - Inches(mm) & Weight Load

KLE Series Side View
KLE Series Weight load

Different Nylatube® Cable Carrier Series

N Series: The Nylatube® N Series is a standard enclosed plastic cable carrier designed for machine tools, washdown environments, and a wide range of industrial applications. Its enclosed design helps protect cables and hoses while providing reliable performance in demanding operating conditions.

KLE Series: The Nylatube® KLE Series is a medium- to large-sized enclosed plastic cable carrier built for durability and long service life. Featuring hinge-open bars on the outer radius for easy cable access, it is well suited for machine tools, heavy-duty equipment, and long-travel applications.
