KS2-13-INNER-10FTKIT - Nylatrac KS Cable / Hose Carrier KS2-13-0 per 10 Feet + Bracket (Pair) Inner

Dynatect® Cable Hose Carriers - Nylatrac® KS Series

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high performance, heavy or light-duty applications with the presence of abrasives, heat, and debris.

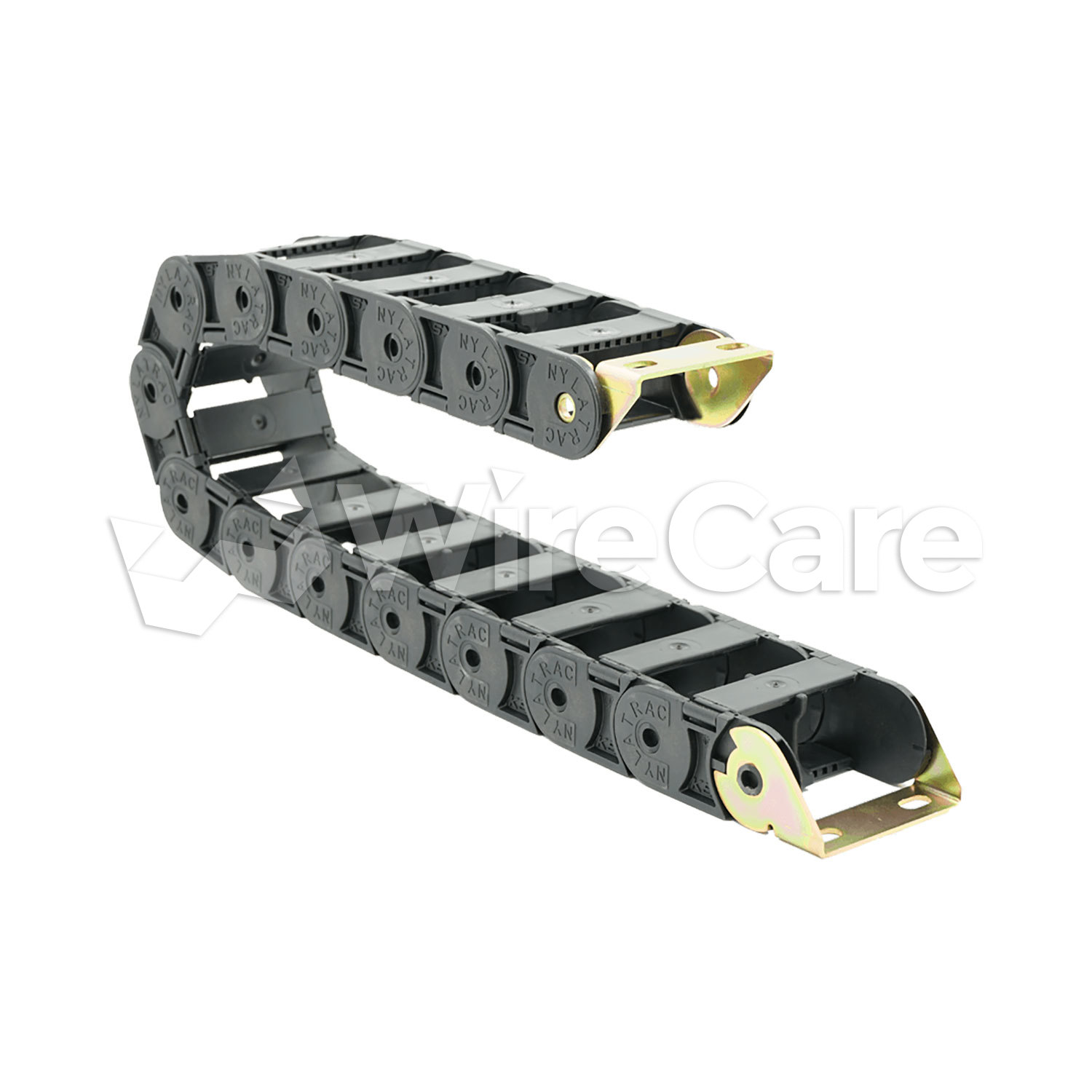

The KS series is a medium size standard plastic carrier. A rugged design with hinge-open bars available on both the inner radius and the outer radius, KS series carriers are an excellent choice for machine tool, mobile equipment and moderate industrial application

APPLICATIONS: Robotics, Automation, Pick & Place, Machine Tool, and Mobile Equipment

SERIES: KS series

KS SERIES INSIDE WIDTH RANGE : 1.5″ to 4″ (38 to 102 mm)

KS SERIES INSIDE HEIGHT: 1.06″ (27 mm)

---

Carrier Cross Sectional View

• Model# KS100 - 1.00 (A - Inside Width) - 1.52 (C - Outer Width) - 0.40 (Weight lb/ft)
• Model# KS150 - 1.50 (A - Inside Width) - 2.02 (C - Outer Width) - 0.44 (Weight lb/ft)
• Model# KS225 - 2.25 (A - Inside Width) - 2.77 (C - Outer Width) - 0.51 (Weight lb/ft)
• Model# KS300 - 3.00 (A - Inside Width) - 3.52 (C - Outer Width) - 0.54 (Weight lb/ft)
• Model# KS400 - 4.00 (A - Inside Width) - 4.52 (C - Outer Width) - 0.60 (Weight lb/ft)

---

Carrier Side View - Inches(mm)

---

Travel/2 + CL (+ Offset Distance From Center*) = Length

Dynatect recommends mounting the stationary end of the carrier at the center of travel, minimizing the required length. In cases where center mounting is not possible, add the distance offset from center to the carrier length calculation.

• 54 (Height)- 2.01 (R- Bend Radius) - 5.40 (H - Curve Height) - 4.56 (K - Depot) - 9.97 (CL - Curve Length)
• 7* (Height)- 2.81 (R- Bend Radius) - 7.00 (H - Curve Height) - 5.38 (K - Depot) - 12.49 (CL - Curve Length)
• 73 (Height)- 2.95 (R- Bend Radius) - 7.28 (H - Curve Height) - 5.32 (K - Depot) - 12.78 (CL - Curve Length)
• 85 (Height)- 3.69 (R- Bend Radius) - 8.75 (H - Curve Height) - 6.25 (K - Depot) - 15.23 (CL - Curve Length)
• 11 (Height)- 5.00 (R- Bend Radius) - 11.38 (H - Curve Height) - 7.56 (K - Depot) - 19.36 (CL - Curve Length)
• 13 (Height)- 5.86 (R- Bend Radius) - 13.10 (H - Curve Height) - 8.37 (K - Depot) - 21.99 (CL - Curve Length)

*Low camber. Consult factory for unsupported span length

---

Different Nylatrac® Cable Carrier Series

KL Series: A medium size standard plastic carrier. It has a rugged design with hinge open bars on the outer radius.

KS Series: A medium size standard plastic carrier. A rugged design with hinge-open bars available on both the inner radius and the outer radius.

NP Series: A medium size standard link plastic carrier. NP features hinge-open crossbars that can open on either the inner or outer radius.

SP Series: A small standard link cable carrier. This carrier utilizes hinge bars that can open on the inner radius or the outer radius.

---
