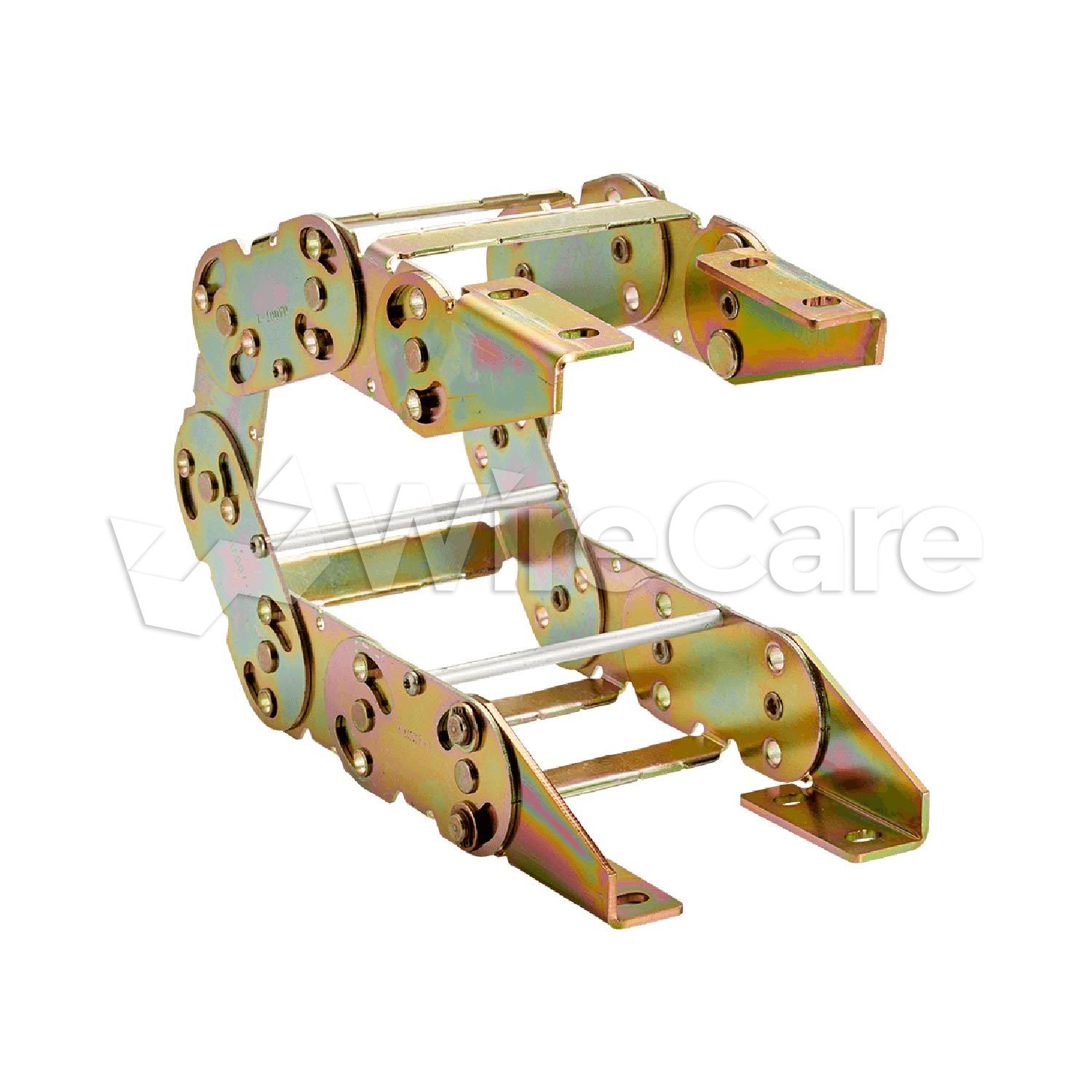

Gortrac® Carriers, MA Series, Cross-Bar, Poly Roller, 13.25" H, 4.50" IW - 10ft kit

Manufacturer: Dynatect
ma-pr-4.50-1325-10ftkit
ma-pr-4.50-1325-10ftkit
MA-PR-4.50-1325-10FTKIT

Price Each: $604.80

Total Price: $604.80

Product Description

Dynatect Logo

Dynatect® Cable Hose Carriers - Gortrac® MA Series

The Gortrac® MA Series is an open-link metal cable carrier with a 2.00″ overall link height and five available widths ranging from 2.25″ to 7.00″. Designed for greater unsupported spans, the MA Series combines lightweight construction with strength and is ideal for aerial work platforms and truck-mounted booms.

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high-performance, heavy- or light-duty applications with the presence of abrasives, heat, and debris.

APPLICATIONS: Aerial Work Platforms, Truck-Mounted Booms, Horizontal Drilling Machines

SERIES: MA series

MA SERIES WIDTH RANGE: 2.25″ to 7.00″ (57 to 178 mm)

MA SERIES LINK HEIGHT: 2.00″ (51 mm)

Carrier Cross Sectional View

MA Series Cross
Model A - Inside Width C - Outer Width Weight (lb/Ft.) Curve Height
MA-PR-2.25-60 2.25 2.63 1.8 6
MA-PR-3.00-60 3.00 3.38 1.9 6
MA-PR-4.50-60 4.50 4.88 2.0 6
MA-PR-5.50-60 5.50 5.88 2.1 6
MA-PR-7.00-60 7.00 7.38 2.2 6
MA-PR-2.25-75 2.25 2.63 1.8 7.5
MA-PR-3.00-75 3.00 3.38 1.9 7.5
MA-PR-4.50-75 4.50 4.88 2.0 7.5
MA-PR-5.50-75 5.50 5.88 2.1 7.5
MA-PR-7.00-75 7.00 7.38 2.2 7.5
MA-PR-2.25-100 2.25 2.63 1.8 10
MA-PR-3.00-100 3.00 3.38 1.9 10
MA-PR-4.50-100 4.50 4.88 2.0 10
MA-PR-5.50-100 5.50 5.88 2.1 10
MA-PR-7.00-100 7.00 7.38 2.2 10
MA-PR-2.25-1325 2.25 2.63 1.8 13.25
MA-PR-3.00-1325 3.00 3.38 1.9 13.25
MA-PR-4.50-1325 4.50 4.88 2.0 13.25
MA-PR-5.50-1325 5.50 5.88 2.1 13.25
MA-PR-7.00-1325 7.00 7.38 2.2 13.25

Carrier Side View & Weight Load

MA Series Side View
MA Series Weight load

Different Gortrac® Cable Carrier Series

MA Series: The MA series is an open-link metal cable carrier with a 2.00” overall link height and 5 widths to choose from (2.25″ to 7.00″). Designed for greater unsupported spans, MA is lightweight and strong – ideal for aerial work platforms and truck-mounted booms.

SRC Series: Gortrac® SRC is a medium-sized steel cable carrier with a 3” link height, bar width flexibility, and six curve heights from 11” to 27.50”. Model SRC features a heavy-duty design and can be constructed with many crossbar options including aluminum lid armor plates for an enclosed carrier.
