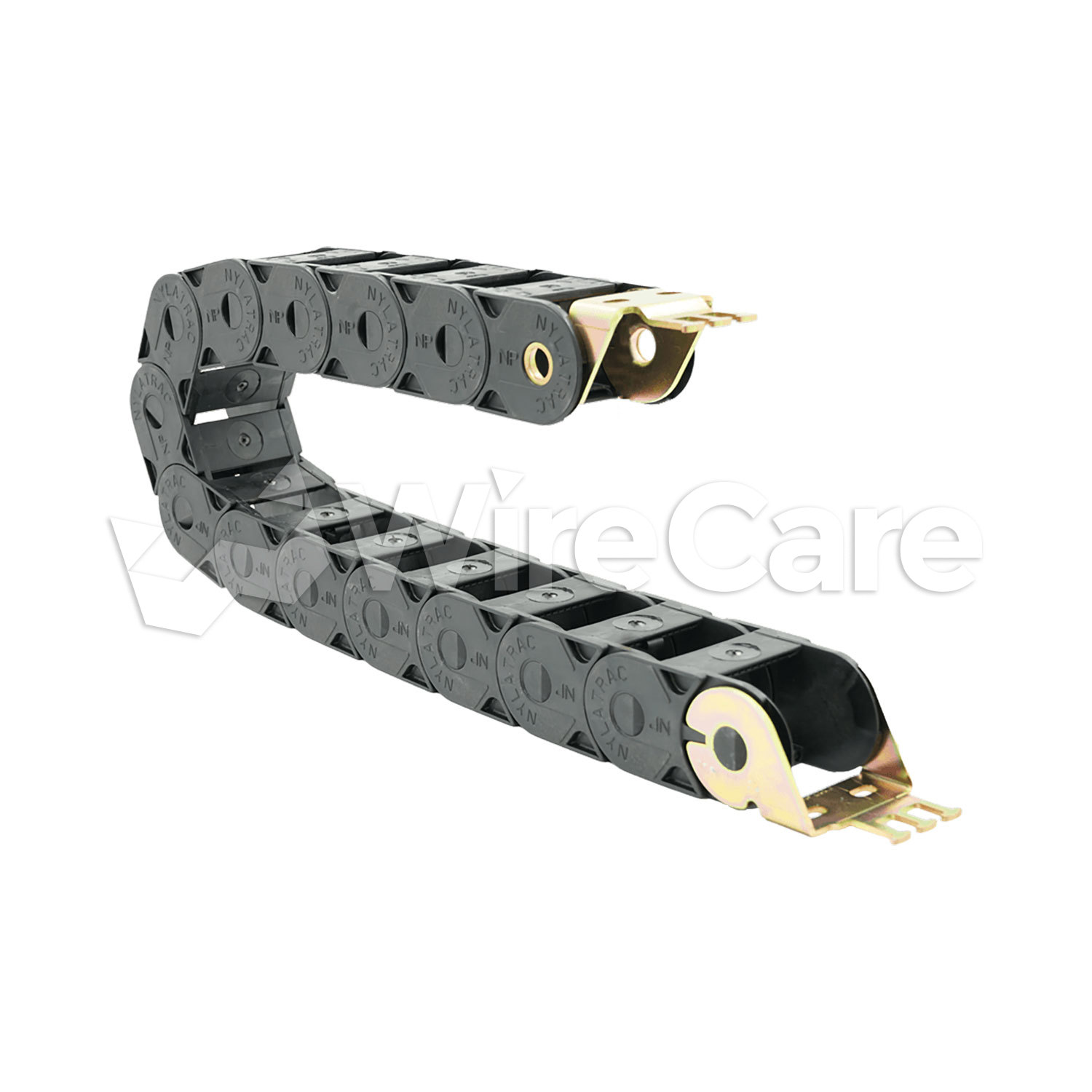

NP200-7-INNER-FOOTAGE - Nylatrac NP Cable / Hose Carrier NP200-7-0 per foot Inner

Dynatect® Cable Hose Carriers - Nylatrac® NP Series

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high performance, heavy or light-duty applications with the presence of abrasives, heat, and debris.

The Nylatrac® NP series is a medium size standard link plastic carrier. NP features hinge-open crossbars that can open on either the inner or outer radius. The user friendly design is excellent for machine tool, industrial and long travel applications. For smaller curve heights, see the P/PH or KS Series. For larger curve heights and cavity sizes, see the KL Series

APPLICATIONS: Robotics, Automation, Pick & Place, Machine Tool, and Mobile Equipment

SERIES: NP series

NP SERIES INSIDE WIDTH RANGE : 2″ to 6″ (51 to 152 mm)

NP SERIES INSIDE HEIGHT: 1.54″ (39 mm)

NP SERIES CURVE HEIGHT RANGE: 7″ to 18″ (178 to 457 mm)

---

Carrier Cross Sectional View

• Model# NP200 - 2.00 (A - Inside Width) - 2.63 (C - Outer Width) - 0.72 (Weight lb/ft)
• Model# NP250 - 2.50 (A - Inside Width) - 3.13 (C - Outer Width) - 0.74 (Weight lb/ft)
• Model# NP300 - 3.00 (A - Inside Width) - 3.63 (C - Outer Width) - 0.78 (Weight lb/ft)
• Model# NP400 - 4.00 (A - Inside Width) - 4.63 (C - Outer Width) - 0.85 (Weight lb/ft)
• Model# NP500 - 5.00 (A - Inside Width) - 5.63 (C - Outer Width) - 0.95 (Weight lb/ft)
• Model# NP600 - 6.00 (A - Inside Width) - 6.63 (C - Outer Width) - 1.03 (Weight lb/ft)

---

Carrier Side View - Inches(mm)

---

Travel/2 + CL (+ Offset Distance From Center*) = Length

Dynatect recommends mounting the stationary end of the carrier at the center of travel, minimizing the required length. In cases where center mounting is not possible, add the distance offset from center to the carrier length calculation.

• 7 (Height)- 2.50 (R- Bend Radius) - 7.00 (H - Curve Height) - 5.67 (K - Depot) - 12.17 (CL - Curve Length)
• 8 (Height)- 2.95 (R- Bend Radius) - 7.90 (H - Curve Height) - 6.12 (K - Depot) - 13.59 (CL - Curve Length)
• 10 (Height)- 3.94 (R- Bend Radius) - 9.88 (H - Curve Height) - 7.11 (K - Depot) - 16.70 (CL - Curve Length)
• 12 (Height)- 4.92 (R- Bend Radius) - 11.84 (H - Curve Height) - 8.09 (K - Depot) - 19.78 (CL - Curve Length)
• 14 (Height)- 5.91 (R- Bend Radius) - 13.82 (H - Curve Height) - 9.07 (K - Depot) - 22.87 (CL - Curve Length)
• 18 (Height)- 7.87 (R- Bend Radius) - 18.00 (H - Curve Height) - 11.04 (K - Depot) - 29.04 (CL - Curve Length)

---

Different Nylatrac® Cable Carrier Series

KL Series: A medium size standard plastic carrier. It has a rugged design with hinge open bars on the outer radius.

KS Series: A medium size standard plastic carrier. A rugged design with hinge-open bars available on both the inner radius and the outer radius.

NP Series: A medium size standard link plastic carrier. NP features hinge-open crossbars that can open on either the inner or outer radius.

SP Series: A small standard link cable carrier. This carrier utilizes hinge bars that can open on the inner radius or the outer radius.

---
