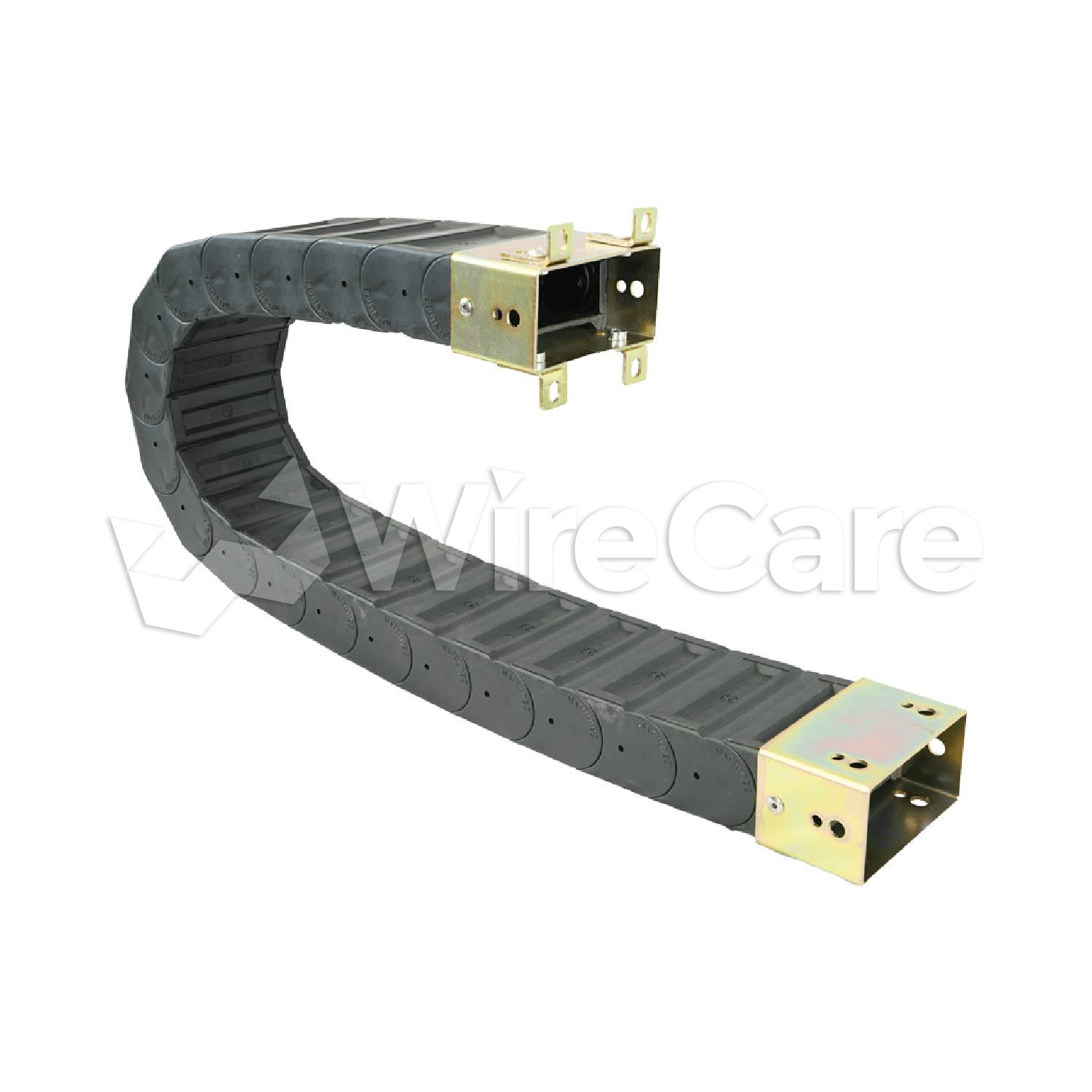

Nylatube® N Series Cable / Hose Carrier N4, 17.7" Curve Height

Dynatect® Cable Hose Carriers - Nylube® N Series

The Nylatube® N Series is a line of enclosed, standard plastic cable carriers designed for machine tools, washdown applications, and industrial applications. Featuring a smooth appearance and solid link design, the N Series provides enclosed cable and hose protection in a range of sizes for light- and medium-duty cable management requirements.

Cable carriers (also known as cable tracks) are flexible hollow structures composed of links to help guide and protect cables, hoses, and hydraulic lines on equipment and machinery. Dynatect manufactures a complete line of cable carrier assemblies for high-performance, heavy- or light-duty applications with the presence of abrasives, heat, and debris.

APPLICATIONS: Machine Tools, Washdown Applications, Industrial Applications

SERIES: N series

N SERIES INSIDE WIDTH RANGE : 0.9″ to 5.35″ (23 to 136 mm)

N SERIES INSIDE HEIGHT RANGE: 0.9″ to 2.24″ (16 to 57 mm)

N SERIES CURVE HEIGHT RANGE: 8″ to 26.6″ (203 to 676 mm)

---

Carrier Cross Sectional View

Model	A- Inside Width	C - Outer Width	Weight (lb/Ft.)	Curve Height
N1-8	0.90	1.38	0.50	8.00
N1-13	0.90	1.38	0.50	13.00
N2-8	1.50	1.97	0.60	8.00
N2-13	1.50	1.97	0.60	13.20
N4-10	1.42	1.97	0.80	9.80
N4-18	1.42	1.97	0.80	17.70
N5-10	3.39	3.94	1.20	9.80
N5-18	3.39	3.94	1.20	17.70

---

Carrier Side View - Inches(mm) & Weight Load

---

Different Nylatube® Cable Carrier Series

N Series: The Nylatube® N Series is a standard enclosed plastic cable carrier designed for machine tools, washdown environments, and a wide range of industrial applications. Its enclosed design helps protect cables and hoses while providing reliable performance in demanding operating conditions.

KLE Series: The Nylatube® KLE Series is a medium- to large-sized enclosed plastic cable carrier built for durability and long service life. Featuring hinge-open bars on the outer radius for easy cable access, it is well suited for machine tools, heavy-duty equipment, and long-travel applications.

---
