Harnessflex®

Deutsch Connector Interfaces

Deutsch Connector Interfaces

Harnessflex offers complete system solutions for the routing and protection of electrical wiring against damage by mechanical abrasion, liquid ingress and corrosion salts. Using a Harnessflex conduit system ensures that vulnerable connectors are not exposed to the elements, impact of foreign bodies or jet washing, all of which can cause vehicle malfunction and failure.

Straight and 90° elbow interfaces providing high integrity connections between Amphenol AT and Deutsch DT connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

TEMPERATURE: -40ºC to 120ºC

MATERIAL: Polyamide (Nylon) 66

FITTING ANGLES: 90° or Straight

CONDUIT DIAMETERS: 8, 10, 12, or 16mm

CAVITIES: 2, 3, 4, 6, 8, or 12

Harnessflex

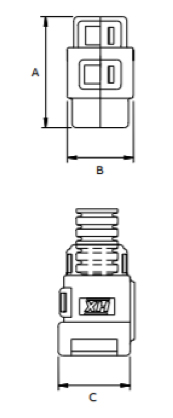

Straight Interface Sizing Chart

Part Number NC Conduit Size NW Conduit Size A (mm) B (mm) C (mm)
CI06-DT2 06 4.5 26.0 16.0 18.0
CI08-DT2 08 7.5 26.0 16.0 18.0
CI12-DT2 12 10 26.0 16.0 18.0
CI08-DT3 08 7.5 30.0 22.0 24.0
CI12-DT3 12 10 29.0 22.0 24.0
CI08-DT4 08 7.5 42.0 18.0 27.0
CI12-DT4 12 10 40.0 18.0 27.0
CI08-DT6 08 7.5 42.0 22.0 27.0
CI12-DT6 12 10 40.0 22.0 27.0
CI12-DT8 12 10 40.0 25.0 30.0
CI16-DT12 16 13 42.0 24.0 40.0
Harnessflex

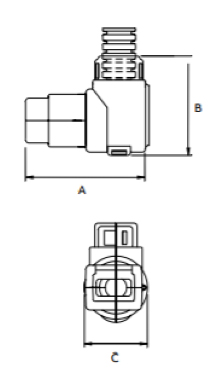

90º Elbow Interface Sizing Chart

Part Number NC Conduit Size NW Conduit Size A (mm) B (mm) C (mm)
CI06-90-DT2 06 4.5 36.0 30.0 19.0
CI08-90-DT2 08 7.5 36.0 30.0 19.0
CI12-90-DT2 12 10 36.0 30.0 19.0
CI08-90-DT3 08 7.5 44.0 30.0 23.0
CI12-90-DT3 12 10 44.0 30.0 23.0
CI08-90-DT4 08 7.5 48.0 30.0 25.0
CI12-90-DT4 12 10 48.0 30.0 25.0
CI08-90-DT6 08 7.5 48.0 34.0 25.0
CI12-90-DT6 12 10 48.0 34.0 25.0
CI12-90-DT8 12 10 63.0 37.0 30.0
CI16-90-DT8 16 13 63.0 37.0 30.0
CI12-90-DT12 12 10 68.0 36.0 38.0
CI16-90-DT12 16 13 68.0 36.0 38.0

Order by:

Cavities

Fitting Angle

Conduit Diameter

28 Products
Filter By...



CI08-DT2
CI08-DT2

Harnessflex® - 2 Way Connector Interface for 8mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $1.24
Price Break Unit Price Extended Price
1 $1.24 $1.24
10 $0.93 $9.32
25 $0.89 $22.15
50 $0.82 $40.80
100 $0.75 $74.60
500 $0.70 $350.00
1000 $0.68 $676.00
Price/Ft:  $1.24
Total: $1.24
CI08-90-DT2
CI08-90-DT2

Harnessflex® - 2 Way Connector Interface for 8mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $1.78
Price Break Unit Price Extended Price
1 $1.78 $1.78
10 $1.27 $12.68
25 $1.24 $30.88
50 $1.06 $53.10
100 $1.00 $100.20
Price/Ft:  $1.78
Total: $1.78
CI16-DT12
CI16-DT12

Harnessflex® - 12 Way Connector Interface for 16mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $3.00
Price Break Unit Price Extended Price
1 $3.00 $3.00
10 $2.89 $28.88
25 $2.08 $52.00
50 $2.02 $101.10
100 $1.85 $184.90
500 $1.73 $866.50
1000 $1.68 $1,675.00
Price/Ft:  $3.00
Total: $3.00
CI08-DT4
CI08-DT4

Harnessflex® - 4 Way Connector Interface for 8mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $2.24
Price Break Unit Price Extended Price
1 $2.24 $2.24
10 $2.06 $20.63
25 $1.93 $48.25
50 $1.69 $84.55
100 $1.61 $160.90
500 $1.52 $761.00
1000 $0.85 $845.00
Price/Ft:  $2.24
Total: $2.24
CI12-DT2-
CI12-DT2

Harnessflex® - 2 Way Connector Interface for 12mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $1.65
Price Break Unit Price Extended Price
1 $1.65 $1.65
10 $1.59 $15.90
25 $1.15 $28.63
50 $1.11 $55.65
100 $1.02 $101.80
500 $0.95 $477.00
1000 $0.92 $922.00
Price/Ft:  $1.65
Total: $1.65
CI12-DT4
CI12-DT4

Harnessflex® - 4 Way Connector Interface for 12mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $2.20
Price Break Unit Price Extended Price
1 $2.20 $2.20
10 $2.12 $21.20
25 $1.53 $38.15
50 $1.48 $74.20
100 $1.36 $135.70
500 $1.27 $636.00
1000 $1.23 $1,230.00
Price/Ft:  $2.20
Total: $2.20
CI12-DT6
CI12-DT6

Harnessflex® - 6 Way Connector Interface for 12mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $3.46
Price Break Unit Price Extended Price
1 $3.46 $3.46
10 $3.19 $31.89
25 $2.98 $74.55
50 $2.61 $130.65
100 $2.49 $248.70
500 $2.35 $1,176.00
1000 $1.31 $1,306.00
Price/Ft:  $3.46
Total: $3.46
CI12-DT3
CI12-DT3

Harnessflex® - 3 Way Connector Interface for 12mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $3.06
Price Break Unit Price Extended Price
1 $3.06 $3.06
10 $2.81 $28.14
25 $2.63 $65.78
50 $2.31 $115.25
100 $2.19 $219.40
500 $2.08 $1,037.50
1000 $1.15 $1,153.00
Price/Ft:  $3.06
Total: $3.06
CI08-DT3
CI08-DT3

Harnessflex® - 3 Way Connector Interface for 8mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $2.04
Price Break Unit Price Extended Price
1 $2.04 $2.04
10 $1.88 $18.76
25 $1.75 $43.85
50 $1.54 $76.85
100 $1.46 $146.30
500 $1.38 $691.50
1000 $0.77 $769.00
Price/Ft:  $2.04
Total: $2.04
CI12-DT8
CI12-DT8

Harnessflex® - 8 Way Connector Interface for 12mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $3.67
Price Break Unit Price Extended Price
1 $3.67 $3.67
10 $3.38 $33.77
25 $3.16 $78.95
50 $2.77 $138.35
100 $2.63 $263.30
500 $2.49 $1,245.00
1000 $1.38 $1,383.00
Price/Ft:  $3.67
Total: $3.67
CI08-90-DT4
CI08-90-DT4

Harnessflex® - 4 Way Connector Interface for 8mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $6.44
Price Break Unit Price Extended Price
1 $6.44 $6.44
10 $5.93 $59.28
25 $5.54 $138.60
50 $4.86 $242.85
100 $4.62 $462.20
500 $4.37 $2,185.00
1000 $2.43 $2,428.00
Price/Ft:  $6.44
Total: $6.44
CI12-90-DT2
CI12-90-DT2

Harnessflex® - 2 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $4.44
Price Break Unit Price Extended Price
1 $4.44 $4.44
10 $4.09 $40.90
25 $3.82 $95.60
50 $3.35 $167.55
100 $3.19 $318.90
500 $3.02 $1,508.00
1000 $1.68 $1,675.00
Price/Ft:  $4.44
Total: $4.44
CI08-90-DT3
CI08-90-DT3

Harnessflex® - 3 Way Connector Interface for 8mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $2.93
Price Break Unit Price Extended Price
1 $2.93 $2.93
10 $2.70 $27.01
25 $2.53 $63.15
50 $2.21 $110.65
100 $2.11 $210.60
500 $1.99 $996.00
1000 $1.11 $1,107.00
Price/Ft:  $2.93
Total: $2.93
CI12-90-DT6
CI12-90-DT6

Harnessflex® - 6 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $4.44
Price Break Unit Price Extended Price
1 $4.44 $4.44
10 $4.09 $40.90
25 $3.82 $95.60
50 $3.35 $167.55
100 $3.19 $318.90
500 $3.02 $1,508.00
1000 $1.68 $1,675.00
Price/Ft:  $4.44
Total: $4.44
CI08-DT6
CI08-DT6

Harnessflex® - 6 Way Connector Interface for 8mm Conduit - Deutsch Compatible - Straight - Hinged

Price/Ft:  $2.24
Price Break Unit Price Extended Price
1 $2.24 $2.24
10 $2.06 $20.63
25 $1.93 $48.25
50 $1.69 $84.55
100 $1.61 $160.90
500 $1.52 $761.00
1000 $0.85 $845.00
Price/Ft:  $2.24
Total: $2.24
CI12-90-DT3
CI12-90-DT3

Harnessflex® - 3 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $3.18
Price Break Unit Price Extended Price
1 $3.18 $3.18
10 $2.93 $29.26
25 $2.74 $68.40
50 $2.40 $119.90
100 $2.28 $228.20
500 $2.16 $1,079.00
1000 $1.20 $1,199.00
Price/Ft:  $3.18
Total: $3.18
CI12-90-DT4
CI12-90-DT4

Harnessflex® - 4 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $3.59
Price Break Unit Price Extended Price
1 $3.59 $3.59
10 $3.30 $33.02
25 $3.09 $77.18
50 $2.71 $135.25
100 $2.58 $257.50
500 $2.44 $1,217.50
1000 $1.35 $1,353.00
Price/Ft:  $3.59
Total: $3.59
CI16-90-DT12
CI16-90-DT12

Harnessflex® - 12 Way Connector Interface for 16mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $10.12
Price Break Unit Price Extended Price
1 $10.12 $10.12
10 $9.31 $93.05
25 $8.70 $217.53
50 $7.62 $381.15
100 $7.26 $725.50
500 $6.86 $3,430.50
1000 $3.81 $3,812.00
Price/Ft:  $10.12
Total: $10.12
CI08-90-DT6
CI08-90-DT6

Harnessflex® - 6 Way Connector Interface for 8mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $4.04
Price Break Unit Price Extended Price
1 $4.04 $4.04
10 $3.71 $37.14
25 $3.47 $86.83
50 $3.04 $152.15
100 $2.90 $289.60
500 $2.74 $1,369.50
1000 $1.52 $1,522.00
Price/Ft:  $4.04
Total: $4.04
CI12-90-DT8
CI12-90-DT8

Harnessflex® - 8 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $6.40
Price Break Unit Price Extended Price
1 $6.40 $6.40
10 $5.89 $58.91
25 $5.51 $137.70
50 $4.83 $241.30
100 $4.59 $459.30
500 $4.34 $2,172.00
1000 $2.41 $2,413.00
Price/Ft:  $6.40
Total: $6.40
CI12-90-DT12
CI12-90-DT12

Harnessflex® - 12 Way Connector Interface for 12mm Conduit - Deutsch Compatible - 90° Elbow - Hinged

Price/Ft:  $5.30
Price Break Unit Price Extended Price
1 $5.30 $5.30
10 $4.88 $48.78
25 $4.56 $114.03
50 $4.00 $199.80
100 $3.80 $380.30
500 $3.60 $1,798.00
1000 $2.00 $1,998.00
Price/Ft:  $5.30
Total: $5.30
16-90-DTP04_Front
16-90-DTP04

Harnessflex® - 90° Elbow Interface - Deutsch DTP04

Price/Ea:  $3.39
Price Break Unit Price Extended Price
1 $3.39 $3.39
5 $2.70 $13.48
10 $2.42 $24.16
25 $2.35 $58.83
50 $2.02 $101.10
100 $1.91 $190.80
Price/Ea:  $3.39
Total: $3.39
CI12-90-DTP04
CI12-90-DTP04

Harnessflex® - 90° Elbow Interface - 12mm

Price/Ea:  $3.99
Price Break Unit Price Extended Price
1 $3.99 $3.99
5 $3.17 $15.84
10 $2.84 $28.39
25 $2.77 $69.13
50 $2.38 $118.80
100 $2.24 $224.20
Price/Ea:  $3.99
Total: $3.99
CI122812-DRC50
CI122812-DRC50

Harnessflex® - 3 Way Interface - 12, 28, 12

Price/Ea:  $8.57
Price Break Unit Price Extended Price
1 $8.57 $8.57
5 $6.81 $34.04
10 $6.10 $61.02
25 $5.94 $148.55
50 $5.11 $255.35
100 $4.82 $481.80
Price/Ea:  $8.57
Total: $8.57
