AMP Series Connector Interfaces

AMP Series Connector Interfaces

Harnessflex offers complete system solutions for the routing and protection of electrical wiring against damage by mechanical abrasion, liquid ingress and corrosion salts. Using a Harnessflex conduit system ensures that vulnerable connectors are not exposed to the elements, impact of foreign bodies or jet washing, all of which can cause vehicle malfunction and failure.

Harnessflex® Connector Interfaces (or backshells as they’re commonly known) offer a compact and high integrity connection between automotive connectors and all types of conduit systems. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector.

TEMPERATURE: -40ºC to 120ºC

MATERIAL: Polyamide (Nylon) 66

FITTING ANGLES: 90° or Straight

CONDUIT DIAMETERS: 8, 10, 12, or 16

CAVITIES: 2, 3, 4, 6, 8, or 12

Single Junction 90° Elbow Interfaces

Single Junction 90° Elbow Interfaces Provide high integrity connections between AMP Superseal or Junior timer connectors and Harnessflex conduit systems. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Harnessflex

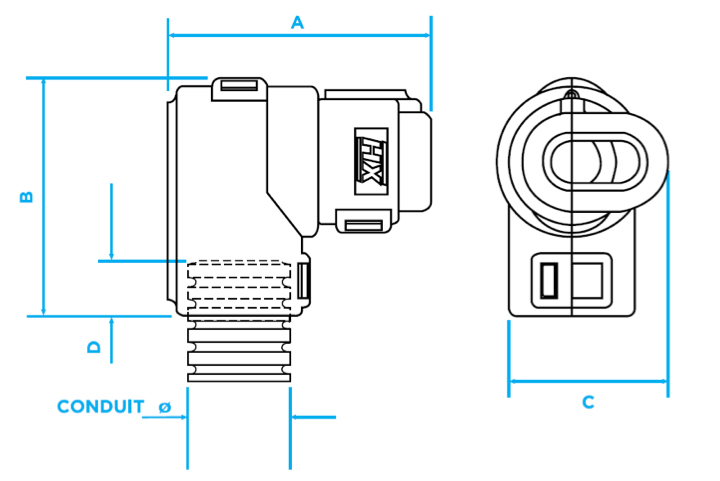

AMP Superseal 90º Elbow Swivel Interface Sizing Chart

Part Number NC Conduit Size NW Conduit Size A (mm) B (mm) C (mm) D (mm) Connector Reference
CI08-90-AS1 08 7.5 37.5 30.3 18 10 AMP Superseal 1-way
CI08-90-AS2 08 7.5 33.3 30.3 18 10 AMP Superseal 2-way
CI08-90-AS3 08 7.5 33.3 30.3 18 10 AMP Superseal 3-way
CI08-90-AS4 08 7.5 37.0 30.3 18 10 AMP Superseal 4-way
CI10-90-AS2 10 8.5 35.0 38.0 19 10 AMP Superseal 2-way
CI10-90-AS3 10 8.5 35.0 38.0 19 10 AMP Superseal 3-way
CI10-90-AS4 10 8.5 41.2 38.0 19 10 AMP Superseal 4-way
CI12-90-AS1 12 10 33.3 30.3 18 10 AMP Superseal 1-way
CI12-90-AS2 12 10 33.3 30.3 20.5 10 AMP Superseal 2-way
CI12-90-AS3 12 10 33.3 30.3 26.7 10 AMP Superseal 3-way
CI12-90-AS4 12 10 37.3 30.3 33 10 AMP Superseal 4-way

Straight Interfaces

Straight Interfaces offer a compact and high integrity connection between Ampseal 16 automotive connectors and Harnessflex conduit systems. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector.

Harnessflex

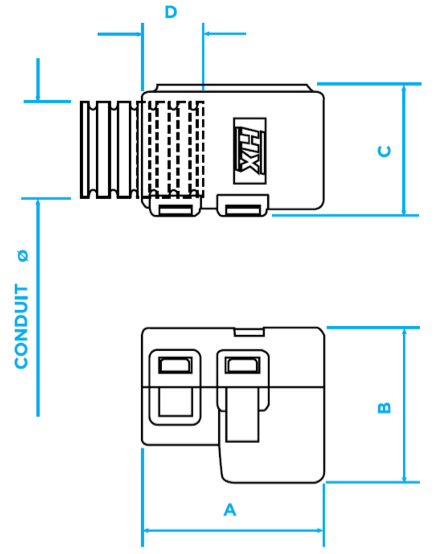

AMP Superseal Straight Interface Sizing Chart

Part Number NC Conduit Size NW Conduit Size A (mm) B (mm) C (mm) D (mm) Connector Reference
CI08-AS1 08 7.5 23.6 16.1 18 10 AMP Superseal 1-way
CI08-AS2 08 7.5 22.4 20.5 18 10 AMP Superseal 2-way
CI08-AS3 08 7.5 22.4 26.5 18 10 AMP Superseal 3-way
CI08-AS4 08 7.5 34.0 33.0 18 10 AMP Superseal 4-way
CI10-AS2 10 8.5 34.0 21.0 20 10 AMP Superseal 2-way
CI10-AS3 10 8.5 34.0 27.0 20 10 AMP Superseal 3-way
CI10-AS4 10 8.5 34.0 33.0 20 10 AMP Superseal 4-way
CI12-AS1 12 10 23.6 16.1 18 10 AMP Superseal 1-way
CI12-AS2 12 10 22.4 20.5 18 10 AMP Superseal 2-way
CI12-AS3 12 10 22.4 26.5 18 10 AMP Superseal 3-way
CI12-AS4 12 10 34.0 33.0 18 10 AMP Superseal 4-way

Order by:

Fitting Angle

Conduit Diameter

Brand Compatability

62 Products
Filter By...



CI08-AS2
CI08-AS2

Harnessflex® - Straight Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $1.28
Price Break Unit Price Extended Price
1 $1.28 $1.28
5 $1.14 $5.70
10 $1.03 $10.26
25 $1.00 $24.93
50 $0.91 $45.60
100 $0.86 $85.50
Price/Ea:  $1.28
Total: $1.28
CI08-AS3
CI08-AS3

Harnessflex® - Straight Interface - 3 way - AMP Superseal or Junior Timer

Price/Ea:  $1.39
Price Break Unit Price Extended Price
1 $1.39 $1.39
5 $1.24 $6.20
10 $1.12 $11.16
25 $1.09 $27.13
50 $0.99 $49.60
100 $0.93 $93.00
Price/Ea:  $1.39
Total: $1.39
CI16-AT8PL
CI16-AT8PL

Harnessflex® - Straight Interface - 8 way - Standard Plug - Ampseal 16

Price/Ea:  $4.45
Price Break Unit Price Extended Price
1 $4.45 $4.45
5 $3.96 $19.80
10 $3.56 $35.64
25 $3.47 $86.63
50 $3.17 $158.40
100 $2.97 $297.00
Price/Ea:  $4.45
Total: $4.45
CI08-AT2PL
CI08-AT2PL

Harnessflex® - Straight Interface - 2 way - Standard Plug - Ampseal 16

Price/Ea:  $1.28
Price Break Unit Price Extended Price
1 $1.28 $1.28
5 $1.14 $5.70
10 $1.03 $10.26
25 $1.00 $24.93
50 $0.91 $45.60
100 $0.86 $85.50
Price/Ea:  $1.28
Total: $1.28
CI12-AT4PL
CI12-AT4PL

Harnessflex® - Straight Interface - 4 way - Standard Plug - Ampseal 16

Price/Ea:  $1.66
Price Break Unit Price Extended Price
1 $1.66 $1.66
5 $1.48 $7.40
10 $1.33 $13.32
25 $1.30 $32.38
50 $1.18 $59.20
100 $1.11 $111.00
Price/Ea:  $1.66
Total: $1.66
CI08-90-AS2
CI08-90-AS2

Harnessflex® - 90° Elbow Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $2.67
Price Break Unit Price Extended Price
1 $2.67 $2.67
5 $2.38 $11.90
10 $2.14 $21.42
25 $2.08 $52.05
50 $1.90 $95.20
100 $1.79 $178.50
Price/Ea:  $2.67
Total: $2.67
CI10-AS3
CI10-AS3

Harnessflex® - Straight Interface - 3 way - AMP Superseal or Junior Timer

Price/Ea:  $1.19
Price Break Unit Price Extended Price
1 $1.19 $1.19
5 $1.06 $5.30
10 $0.95 $9.54
25 $0.93 $23.18
50 $0.85 $42.40
100 $0.80 $79.50
Price/Ea:  $1.19
Total: $1.19
CI12-90-AT2PL
CI12-90-AT2PL

Harnessflex® - 90° Elbow Interface - 2 way - Standard Plug - Ampseal 16

Price/Ea:  $4.59
Price Break Unit Price Extended Price
1 $4.59 $4.59
5 $4.08 $20.40
10 $3.67 $36.72
25 $3.57 $89.25
50 $3.26 $163.20
100 $3.06 $306.00
Price/Ea:  $4.59
Total: $4.59
CI12-90-AT3PL
CI12-90-AT3PL

Harnessflex® - 90° Elbow Interface - 3 way - Standard Plug - Ampseal 16

Price/Ea:  $4.59
Price Break Unit Price Extended Price
1 $4.59 $4.59
5 $4.08 $20.40
10 $3.67 $36.72
25 $3.57 $89.25
50 $3.26 $163.20
100 $3.06 $306.00
Price/Ea:  $4.59
Total: $4.59
CI12-AT6PL
CI12-AT6PL

Harnessflex® - Straight Interface - 6 way - Standard Plug - Ampseal 16

Price/Ea:  $1.77
Price Break Unit Price Extended Price
1 $1.77 $1.77
5 $1.58 $7.90
10 $1.42 $14.22
25 $1.38 $34.55
50 $1.26 $63.20
100 $1.19 $118.50
Price/Ea:  $1.77
Total: $1.77
CI16-AT12PL
CI16-AT12PL

Harnessflex® - Straight Interface - 12 way - Standard Plug - Ampseal 16

Price/Ea:  $4.88
Price Break Unit Price Extended Price
1 $4.88 $4.88
5 $4.34 $21.70
10 $3.91 $39.06
25 $3.80 $94.93
50 $3.47 $173.60
100 $3.26 $325.50
Price/Ea:  $4.88
Total: $4.88
CI08-90-AM3
CI08-90-AM3

Harnessflex® - 90° Elbow Interface - 3 way - AMP Superseal or Junior Timer

Price/Ea:  $2.67
Price Break Unit Price Extended Price
1 $2.67 $2.67
5 $2.38 $11.90
10 $2.14 $21.42
25 $2.08 $52.05
50 $1.90 $95.20
100 $1.79 $178.50
Price/Ea:  $2.67
Total: $2.67
CI08-AM3
CI08-AM3

Harnessflex® - Straight Interface - 3 way - AMP Superseal or Junior Timer

Price/Ea:  $1.14
Price Break Unit Price Extended Price
1 $1.14 $1.14
5 $1.02 $5.10
10 $0.92 $9.18
25 $0.89 $22.30
50 $0.82 $40.80
100 $0.77 $76.50
Price/Ea:  $1.14
Total: $1.14
CI08-AS1
CI08-AS1

Harnessflex® - Straight Interface - 1 way - AMP Superseal or Junior Timer

Price/Ea:  $1.28
Price Break Unit Price Extended Price
1 $1.28 $1.28
5 $1.14 $5.70
10 $1.03 $10.26
25 $1.00 $24.93
50 $0.91 $45.60
100 $0.86 $85.50
Price/Ea:  $1.28
Total: $1.28
CI12-90-AT6LP
CI12-90-AT6LP

Harnessflex® - 90° Elbow Interface - 6 way - Low Profile Plug - Ampseal 16

Price/Ea:  $2.49
Price Break Unit Price Extended Price
1 $2.49 $2.49
5 $2.22 $11.10
10 $2.00 $19.98
25 $1.94 $48.55
50 $1.78 $88.80
100 $1.67 $166.50
Price/Ea:  $2.49
Total: $2.49
CI08-90-AM2
CI08-90-AM2

Harnessflex® - 90° Elbow Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $1.44
Price Break Unit Price Extended Price
1 $1.44 $1.44
5 $1.28 $6.40
10 $1.15 $11.52
25 $1.12 $28.00
50 $1.02 $51.20
100 $0.96 $96.00
Price/Ea:  $1.44
Total: $1.44
CI08-90-AT3PL
CI08-90-AT3PL

Harnessflex® - 90° Elbow Interface - 3 way - Standard Plug - Ampseal 16

Price/Ea:  $1.77
Price Break Unit Price Extended Price
1 $1.77 $1.77
5 $1.58 $7.90
10 $1.42 $14.22
25 $1.38 $34.55
50 $1.26 $63.20
100 $1.19 $118.50
Price/Ea:  $1.77
Total: $1.77
CI08-AM2
CI08-AM2

Harnessflex® - Straight Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $1.01
Price Break Unit Price Extended Price
1 $1.01 $1.01
5 $0.90 $4.50
10 $0.81 $8.10
25 $0.79 $19.68
50 $0.72 $36.00
100 $0.68 $67.50
Price/Ea:  $1.01
Total: $1.01
CI08-AS4
CI08-AS4

Harnessflex® - Straight Interface - 4 way - AMP Superseal or Junior Timer

Price/Ea:  $1.53
Price Break Unit Price Extended Price
1 $1.53 $1.53
5 $1.36 $6.80
10 $1.22 $12.24
25 $1.19 $29.75
50 $1.09 $54.40
100 $1.02 $102.00
Price/Ea:  $1.53
Total: $1.53
CI12-AM2_
CI12-AM2

Harnessflex® - Straight Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $1.37
Price Break Unit Price Extended Price
1 $1.37 $1.37
5 $1.22 $6.10
10 $1.10 $10.98
25 $1.07 $26.68
50 $0.98 $48.80
100 $0.92 $91.50
Price/Ea:  $1.37
Total: $1.37
CI08-AT3PL
CI08-AT3PL

Harnessflex® - Straight Interface - 3 way - Standard Plug - Ampseal 16

Price/Ea:  $1.53
Price Break Unit Price Extended Price
1 $1.53 $1.53
5 $1.36 $6.80
10 $1.22 $12.24
25 $1.19 $29.75
50 $1.09 $54.40
100 $1.02 $102.00
Price/Ea:  $1.53
Total: $1.53
CI10-90-AM2
CI10-90-AM2

Harnessflex® - 90° Elbow Interface - 2 way - AMP Superseal or Junior Timer

Price/Ea:  $2.67
Price Break Unit Price Extended Price
1 $2.67 $2.67
5 $2.38 $11.90
10 $2.14 $21.42
25 $2.08 $52.05
50 $1.90 $95.20
100 $1.79 $178.50
Price/Ea:  $2.67
Total: $2.67
CI12-AT8PL
CI12-AT8PL

Harnessflex® - Straight Interface - 8 way - Standard Plug - Ampseal 16

Price/Ea:  $4.18
Price Break Unit Price Extended Price
1 $4.18 $4.18
5 $3.72 $18.60
10 $3.35 $33.48
25 $3.26 $81.38
50 $2.98 $148.80
100 $2.79 $279.00
Price/Ea:  $4.18
Total: $4.18
CI08-AT4PL
CI08-AT4PL

Harnessflex® - Straight Interface - 4 way - Standard Plug - Ampseal 16

Price/Ea:  $3.91
Price Break Unit Price Extended Price
1 $3.91 $3.91
5 $3.48 $17.40
10 $3.13 $31.32
25 $3.05 $76.13
50 $2.78 $139.20
100 $2.61 $261.00
Price/Ea:  $3.91
Total: $3.91
