FCI Automotive Apex Connector Interfaces

FCI Automotive Apex Connector Interfaces

Harnessflex offers complete system solutions for the routing and protection of electrical wiring against damage by mechanical abrasion, liquid ingress and corrosion salts. Using a Harnessflex conduit system ensures that vulnerable connectors are not exposed to the elements, impact of foreign bodies or jet washing, all of which can cause vehicle malfunction and failure.

Single junction, straight and 90° elbow interfaces providing high integrity connections between FCI Apex connectors or Junior timer connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

TEMPERATURE: -40ºC to 120ºC

MATERIAL: Polyamide (Nylon) 66

FITTING ANGLES: 90° or Straight

CONDUIT DIAMETERS: 8, 12, 16, or 25mm

Harnessflex
Harnessflex

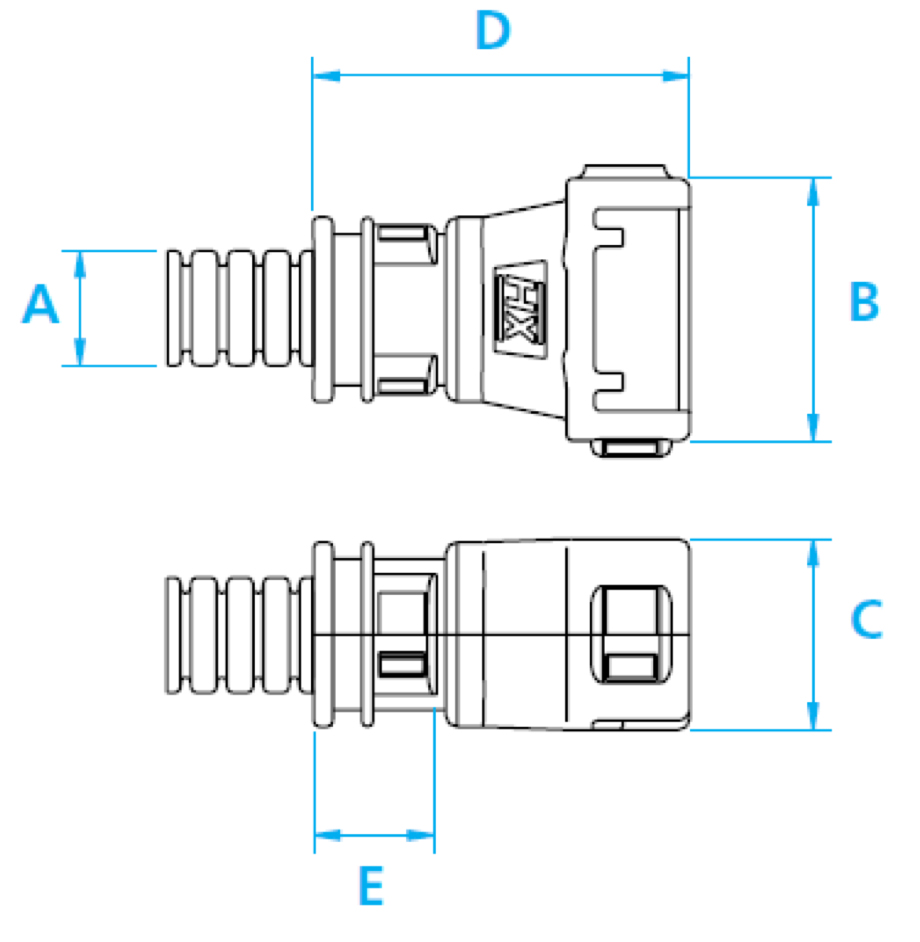

Straight Interface Sizing Chart

Part Number Connector NC Conduit Size (A) NW Conduit Size (A) B (mm) C (mm) D (mm) E (mm)
CI08-FCI02 2 Way 08 7.5 25.0 17 33 12
CI08-FCI03 3 Way 08 7.5 34.0 17 34 12
CI08-FCI04 4 Way 08 7.5 39.0 17 34 12
CI12-FCI02 2 Way 12 10 25.0 17 27 7
CI12-FCI03 3 Way 12 10 35.0 17 29 7
CI12-FCI04 4 Way 12 10 38.0 17 29 7
CI12-FCI14 14 Way 12 10 53.0 26.0 34 10
CI16-FCI14 14 Way 16 13 53.0 26.0 59 10
16-FCI14 14 Way n/a n/a 53.0 26.0 33 n/a
CI17-FCI10 10 Way 17 14 39.2 25.5 44 10.6
CI25-FCI50 50 Way 25 22 56.0 37.0 50.7 13
Harnessflex
Harnessflex

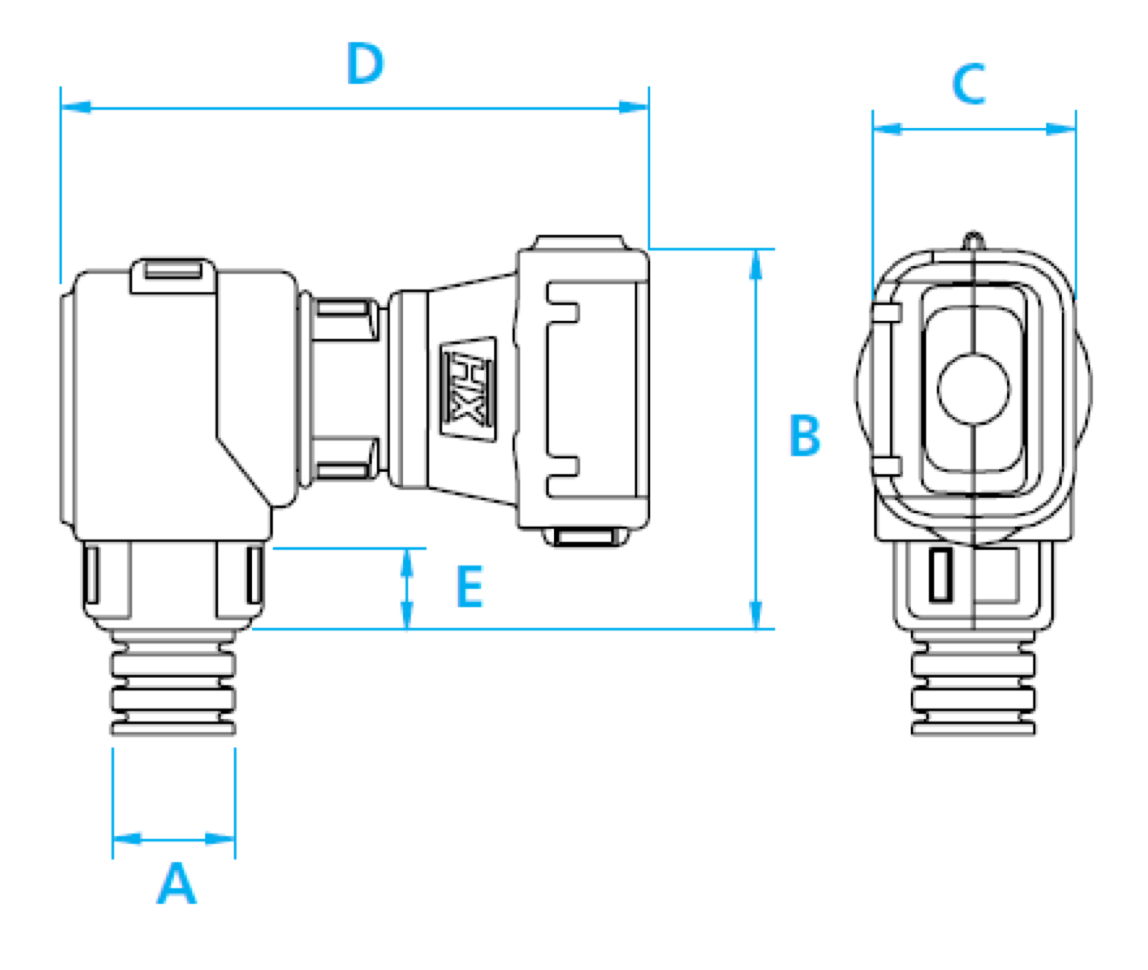

90º Elbow Interface Sizing Chart

Part Number Connector NC Conduit Size (A) NW Conduit Size (A) B (mm) C (mm) D (mm) E (mm)
CI08-90-FCS02 2 Way 08 7.5 30.0 19.0 33 10
CI08-90-FCI02 2 Way 08 7.5 31.0 19.0 48 10
CI08-90-FCI03 3 Way 08 7.5 35.0 19.0 49 10
CI08-90-FCI04 4 Way 08 7.5 38.0 19.0 49 10
CI12-90-FCI02 2 Way 12 10 32.0 19.0 48 10
CI12-90-FCI03 3 Way 12 10 37.0 19.0 49 10
CI12-90-FCI04 4 Way 12 10 38.0 19.0 49 10
CI08-90-FCI14 14 Way 8 7.5 38.0 24.0 57 10
CI12-90-FCI14 14 Way 12 10 38.0 24.0 57 10
CI16-90-FCI14 14 Way 16 13 38.0 24.0 57 10
